Interior Lamp - Inoperative

9231mazda01

Bulletin No.: 023/92
Issued: 3/4/92


Category
S


Applicable Model/s:
1989-'91 MPV


Subject:

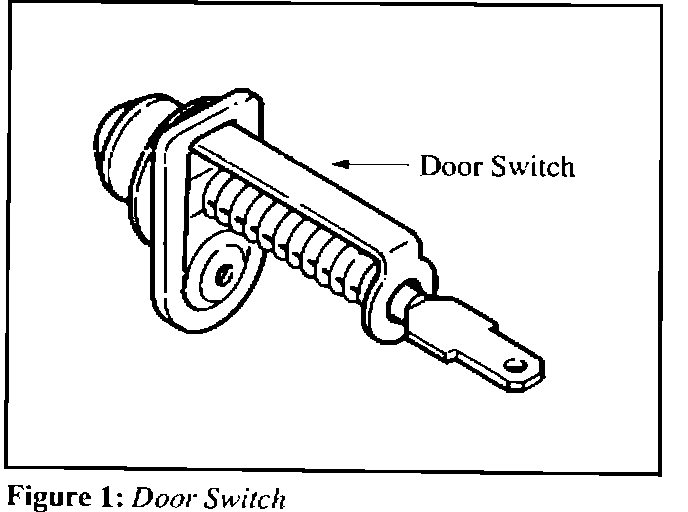

DOOR SWITCH


DESCRIPTION

An inoperative interior lamp may be caused by a broken actuator rod in the door switch. Symptoms include an interior lamp that stays "on" or does not come "on" at all.

Switches with reinforced actuator rods have been included in vehicles produced since January 16, 1991 (see VIN below).

The actuator rod is not available as a service part. The switch assemblies must be replaced.


VIN OF PRODUCTION CHANGE

JM3LV****M0332751 January 16, 1991






REPAIR PROCEDURE

Replace the door switch according to Workshop Manual procedures in Section S.


PARTS INFORMATION

PART NUMBER DESCRIPTION QTY INTERCHANGEABILITY

LA01 66 540 Switch, Door 1 New -> Old


WARRANTY INFORMATION

(Applies to vehicles covered under warranty.)

Warranty Type Code: A
Customer Comment Code: 61 (does not switch "on") or
62 (does not switch "off")
Damage Code: 9A
Part No. of Main Cause: LA01 66 540
Quantity: 1
Operation No: T0210XRX
Labor Hour: 0.2 Hr.
