Front Axle, 4WD - Servicing

Bulletin No.: 002/94
Issued: 12/23/94
Revised:

Category
M

Applicable Model/s
1989-94 MPV
With 4WD

Subject:
FRONT AXLE SERVICING

APPLICABLE MODELS/VINS
All 1989-94 MPV models with 4WD

DESCRIPTION

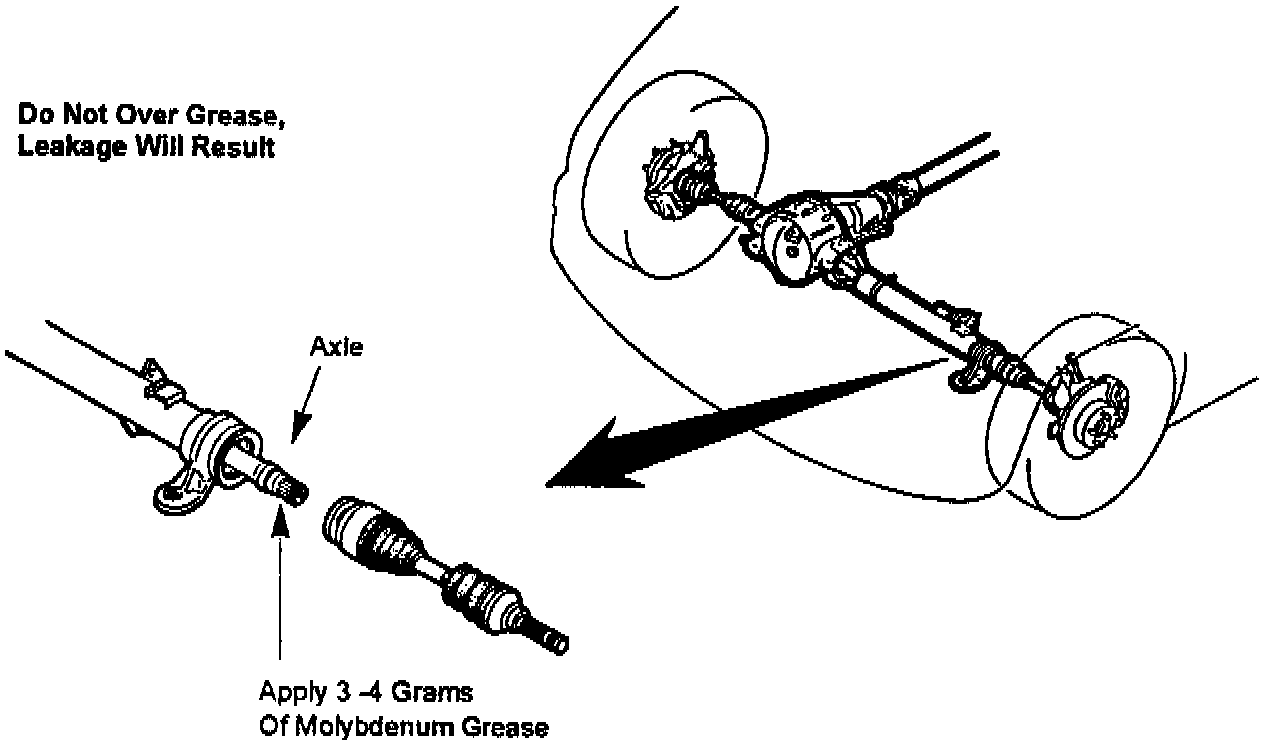

When servicing front axles on 4WD model vehicles, apply molybdenum grease (3-4 grams) on the front spline prior to assembly. Applying grease will prevent wear related noise in the future.

WARNING:
If too much grease is applied, leakage through the seal plate will result.
