DTC 4

Anti-lock Brake System Diagnosis (ABS-4):

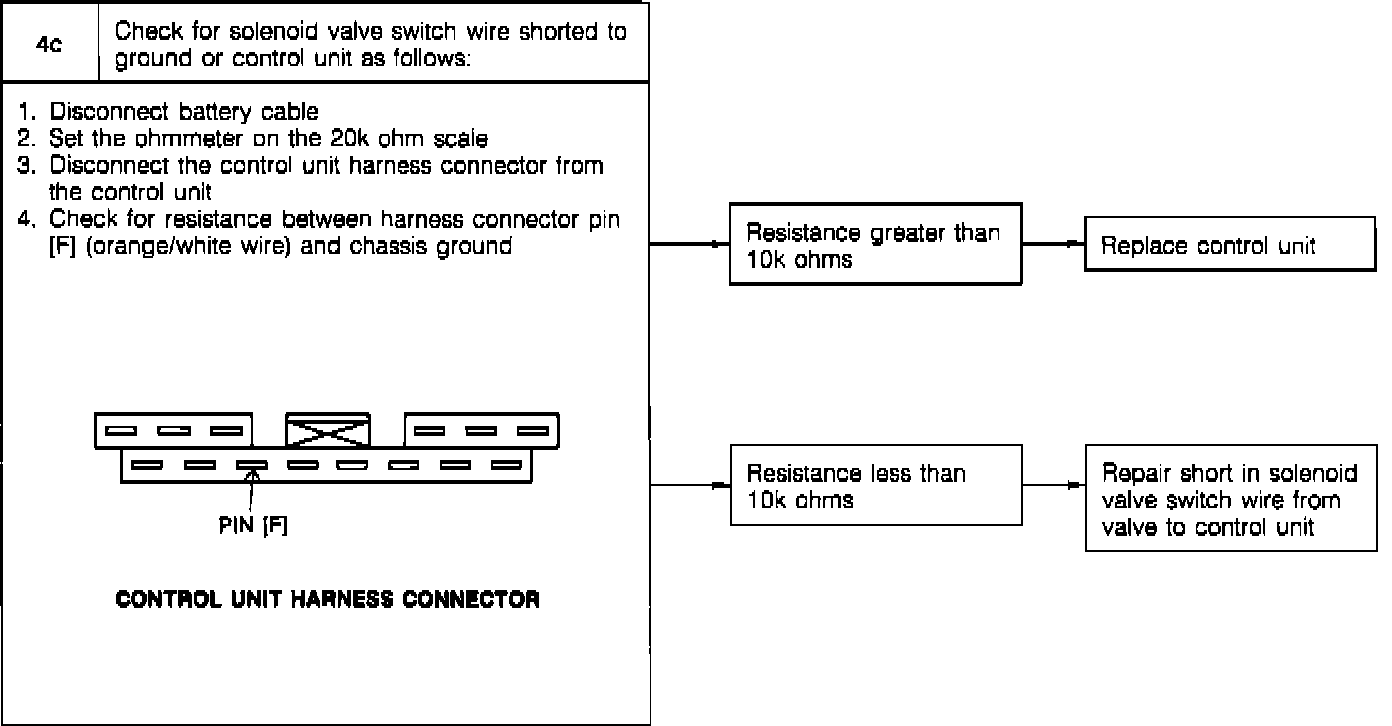

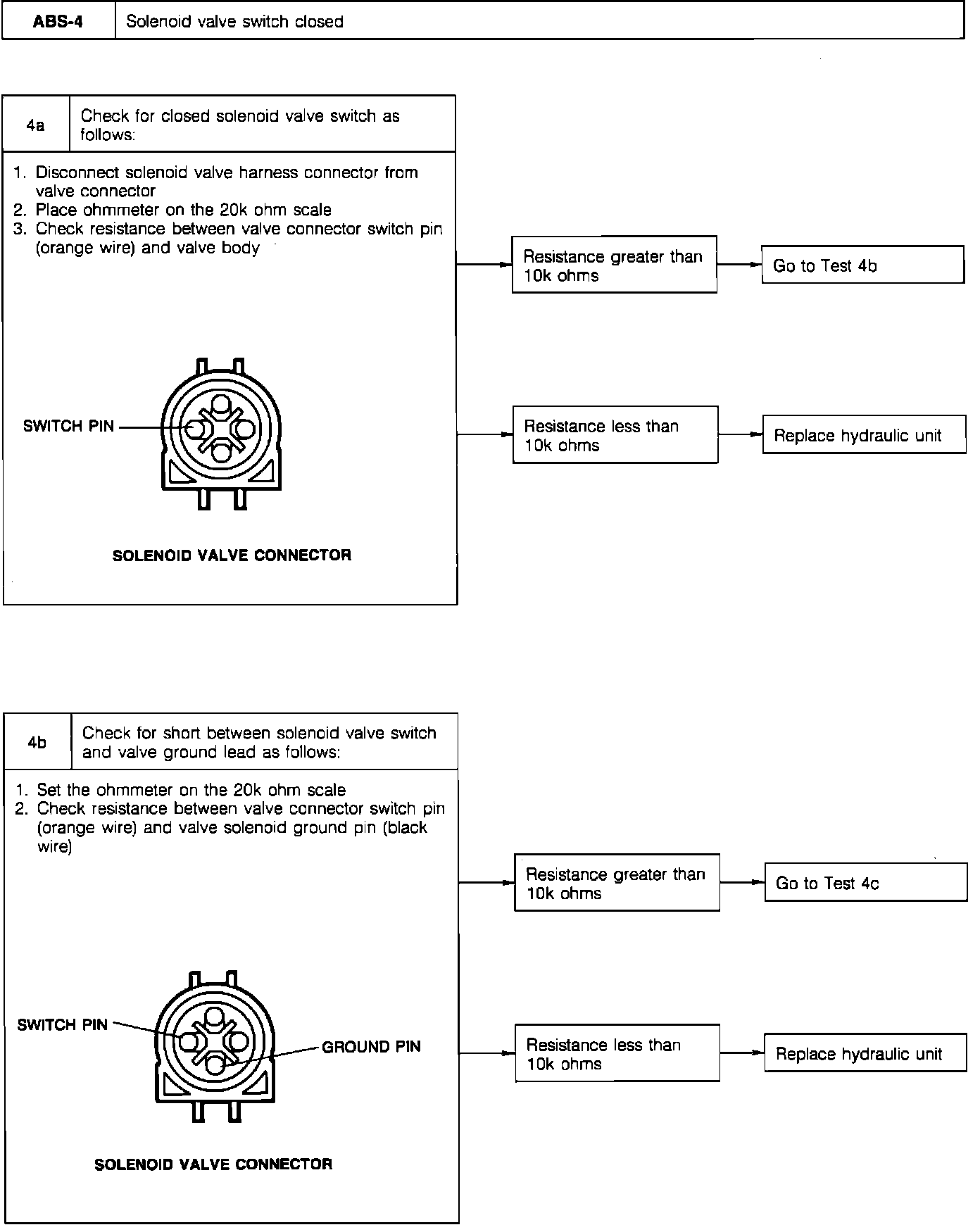

Fig. 22 Anti-lock Brake System Diagnosis (ABS-4, Part 4 Of 12):
