Transmission Mode Switch: Testing and Inspection

RFW SWITCH
Inspection
1. Disconnect the negative battery terminal.
2. Jack up the vehicle and support it with safety stands.

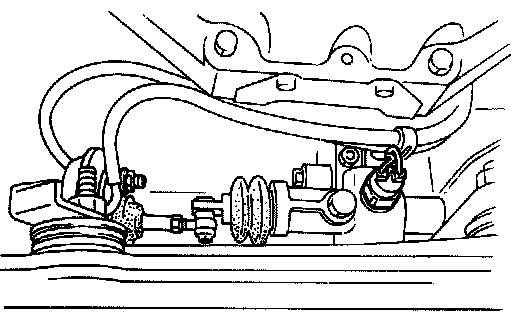

3. Disconnect the RFW switch connector and remove the switch.

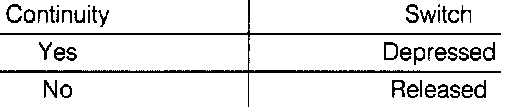

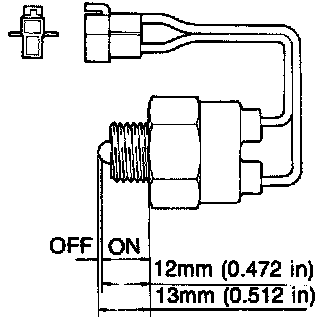

4. Check continuity of the switch with an ohmmeter.






5. If not correct, replace the switch.
