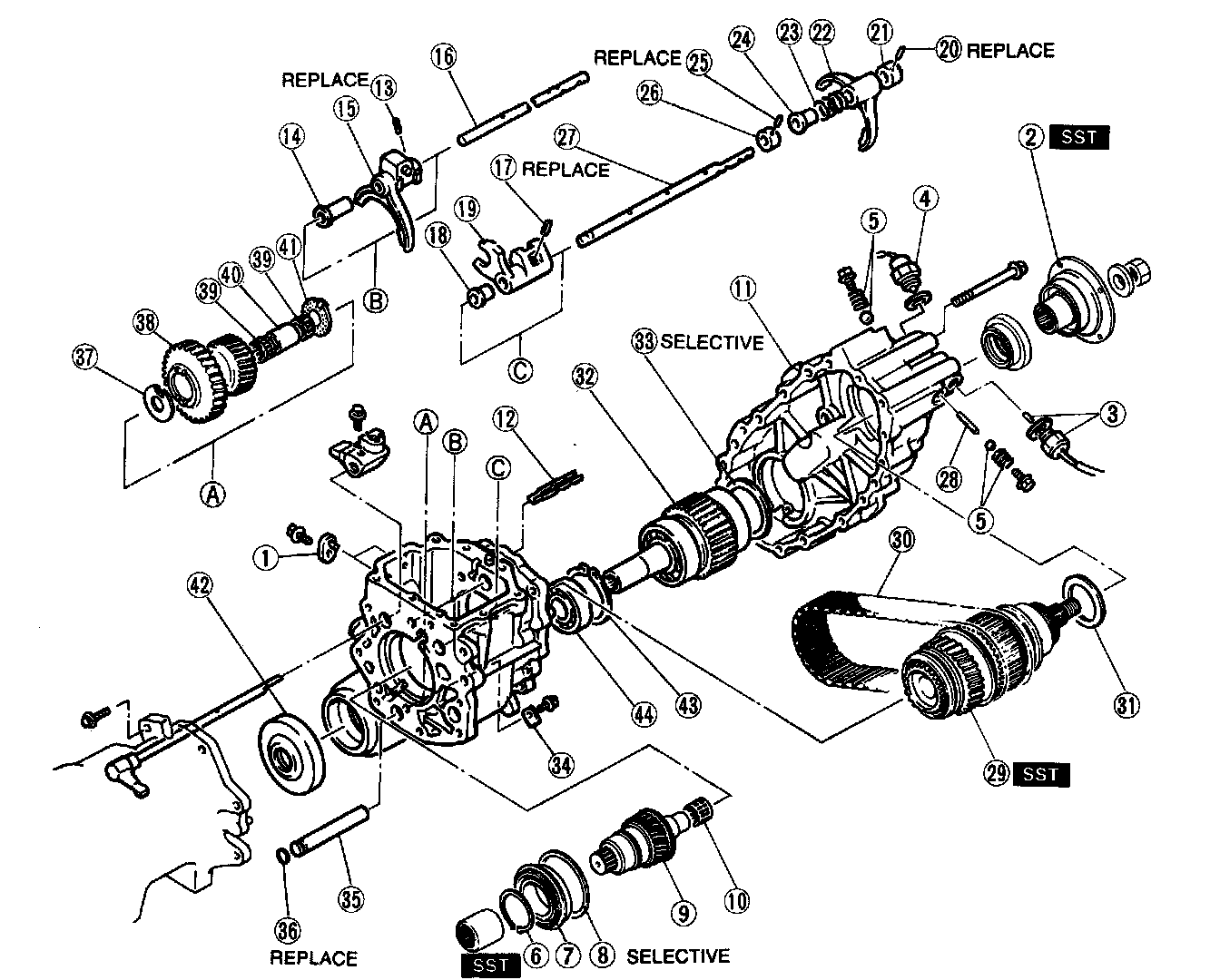

Transfer Case

1. Stopper pin
2. Companion flange
3. Transfer case switch (4x4 indicator switch) and pin
4. Transfer case switch (Neutral switch); AIT
5. Detent ball and spring
6. Snap ring
7. Bearing
8. Adjusting shim
9. Input shaft gear
10. Bearing
11. Chain cover
12. Oil passage
13. Roll pin
14. Spacer
15. L shift fork
16. L shift rod
17. Roll pin
18. Spacer
19. 2W-4W shift end
20. Roll pin
21. Retainer
22. 2W-4W shift fork
23. Spring
24. Spacer
25. RoIl pin
26. Retainer
27. 2W-4W shift rod
28. Interlock pin
29. Output shaft assembly
30. Chain
31. Adjusting shim
32. Front drive sprocket assembly
33. Adjusting shim
34. Lock plate
35. Countershatt
36. 0-ring
37. Thrust washer
38. Counter gear
39. Bearing
40. Spacer
41. Thrust washer
42. Oil seal
43. Snap ring
44. Bearing
