Ignition System: Locations

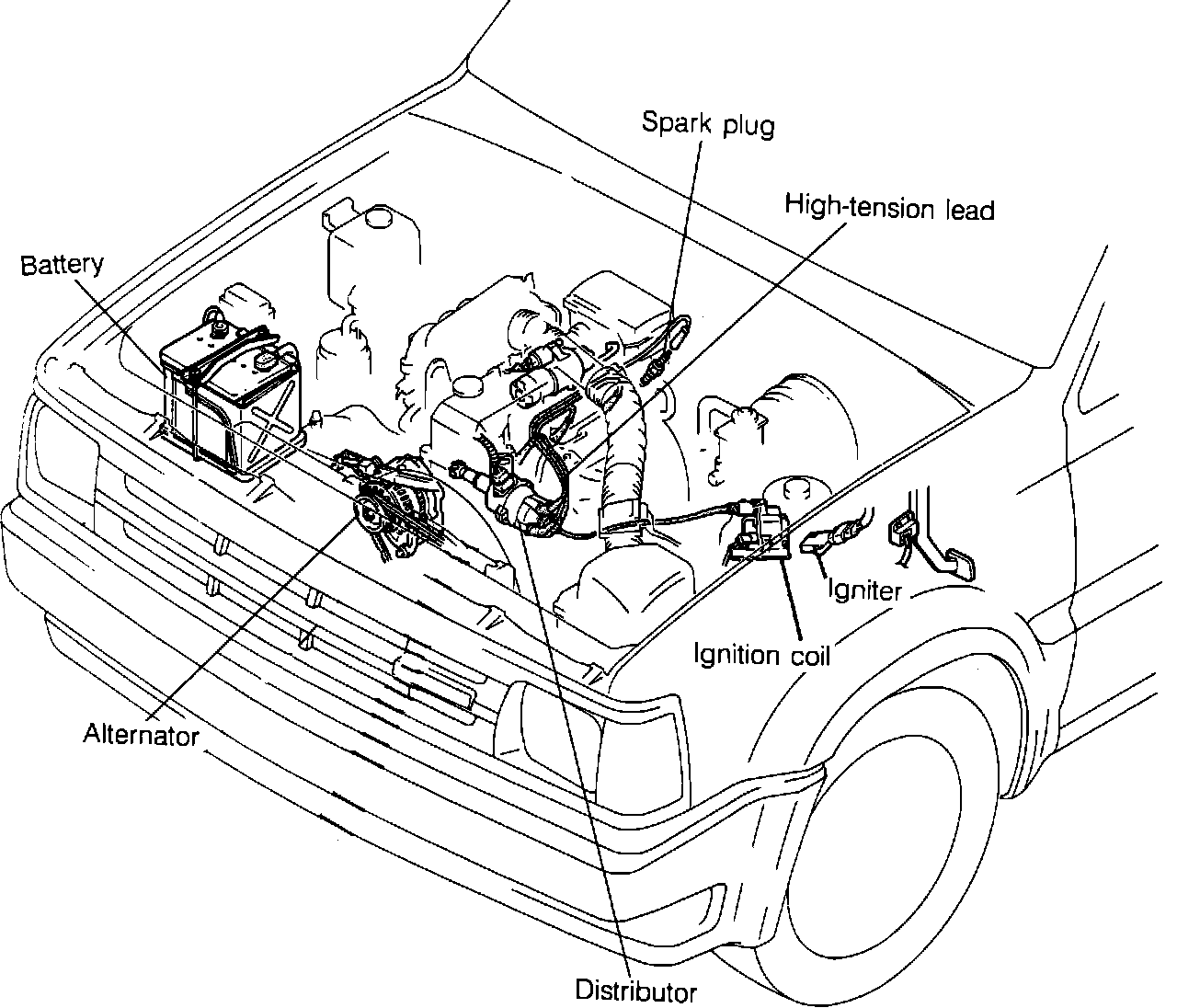

System Components:

DISTRIBUTOR, CAP AND ROTOR
Located at left front side of cylinder head.

ENGINE CONTROL UNIT (ECU)
Located behind the right side kick panel.

IGNITER
Located on the left side inner fender near the coil.

IGNITION COIL
Located on the left side inner fender.

IGNITION WIRES
Routed between coil, spark plugs and distributor cap.

SPARK PLUGS
One per cylinder on left side of cylinder head.

TEST CONNECTOR
Located near the fuel filter on the right side of the engine compartment.
