Home >> Mazda Truck >> 1991 >> B Series Truck 2WD L4-2606cc 2.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> Idle Problems & Stalling >> Low Idle Speed Problems >> Low Idle Speed-When A/C, P/S, or Electric Load on

Low Idle Speed-When A/C, P/S, or Electric Load on

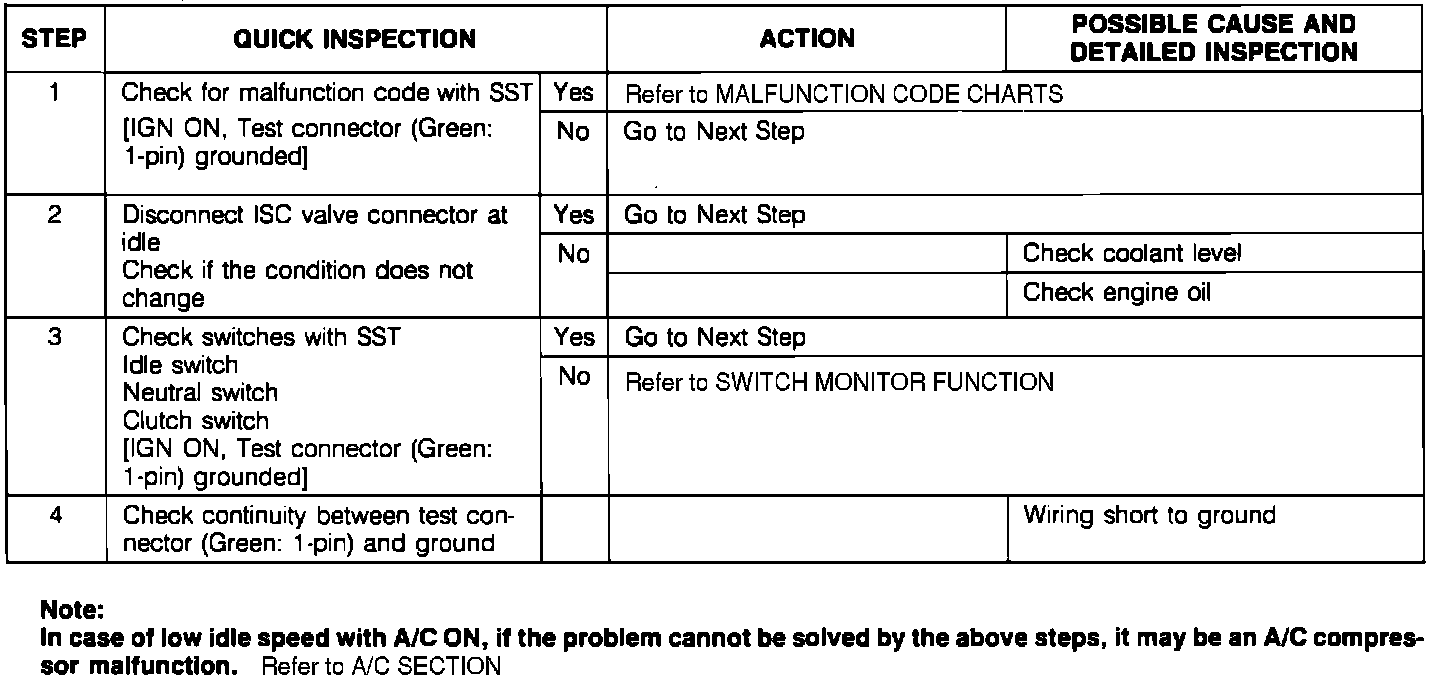

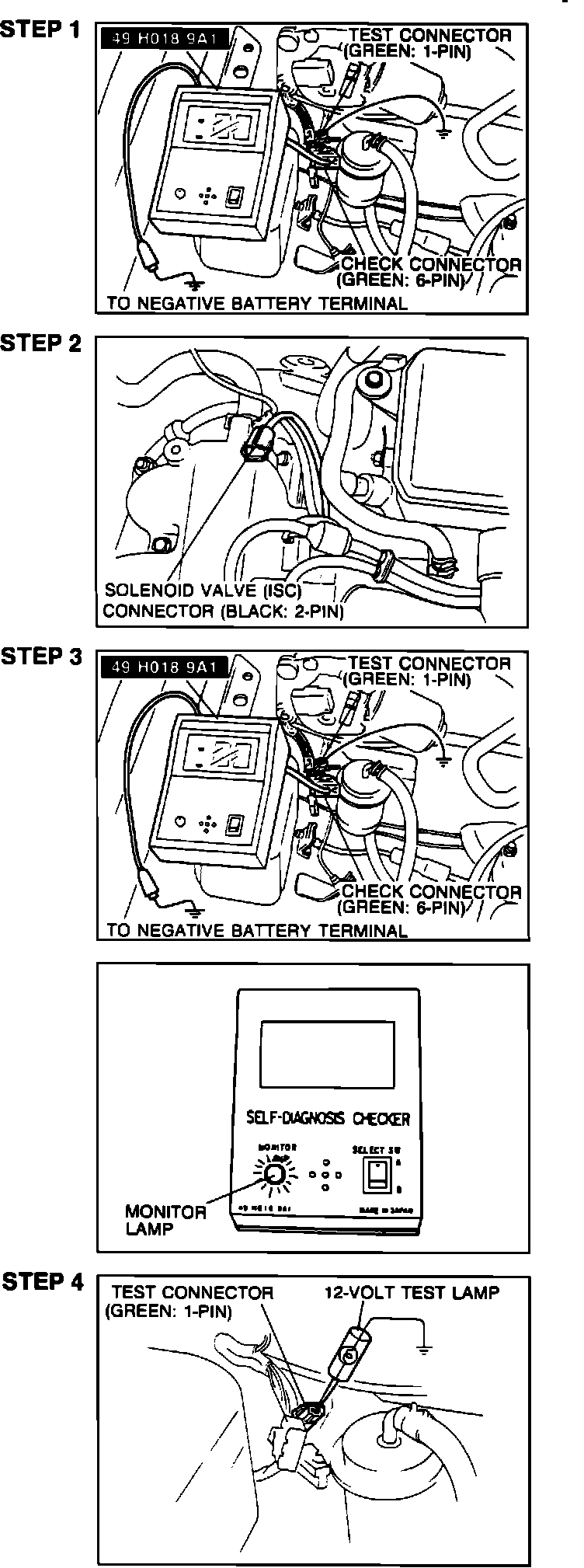

Low Idle Speed (When A/C, P/S, E/L On):



Low Idle Speed (When A/C, P/S, E/L On):
