Refrigerant Pressure Sensor / Switch: Testing and Inspection

Refrigerant Pressure Switch Inspection

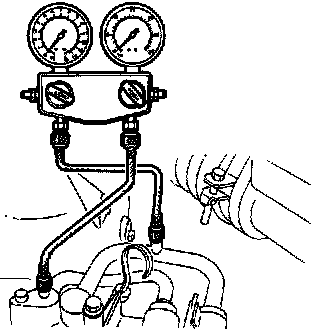

1. Install the manifold gauge set.

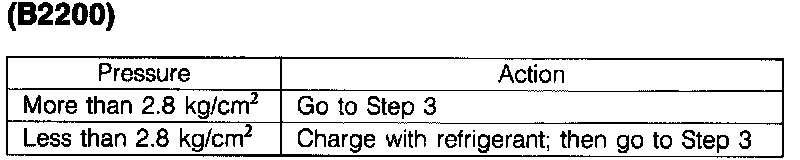

2. Measure the refrigerant pressure.

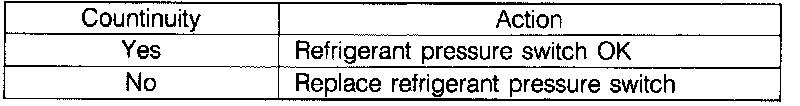

3. Check for continuity between the terminals of the refrigerant pressure switch.
