Mazda Truck
>>
1991
>>
B Series Truck 2WD L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
System Diagram
System Diagram

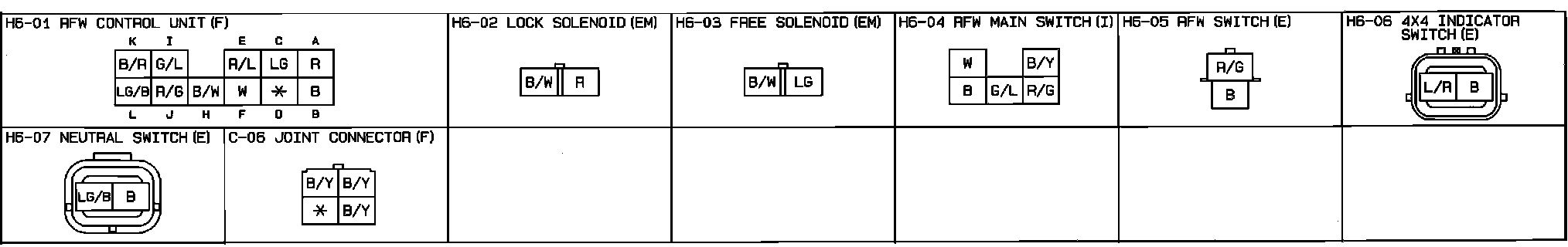

Remote Free Wheel Control System. 4X4. Connector Identification:
