Mazda Truck
>>
1991
>>
B Series Truck 2WD L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting System
>>
Ignition Switch
Ignition Switch

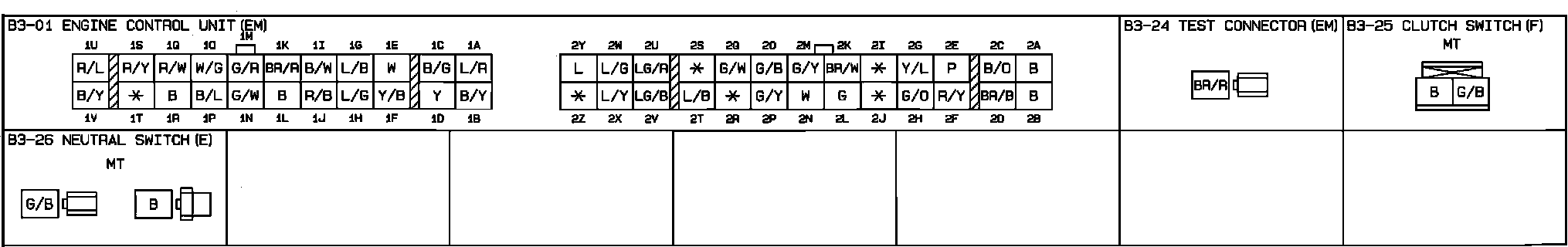

Ignition And Engine Control System. Connector Identification:

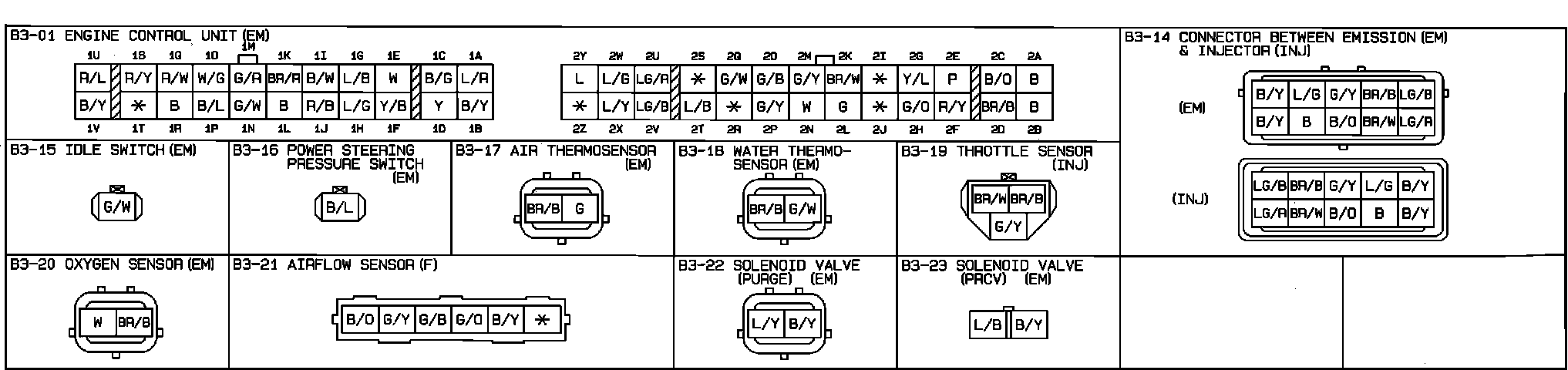

Engine Control System. Connector Identification:

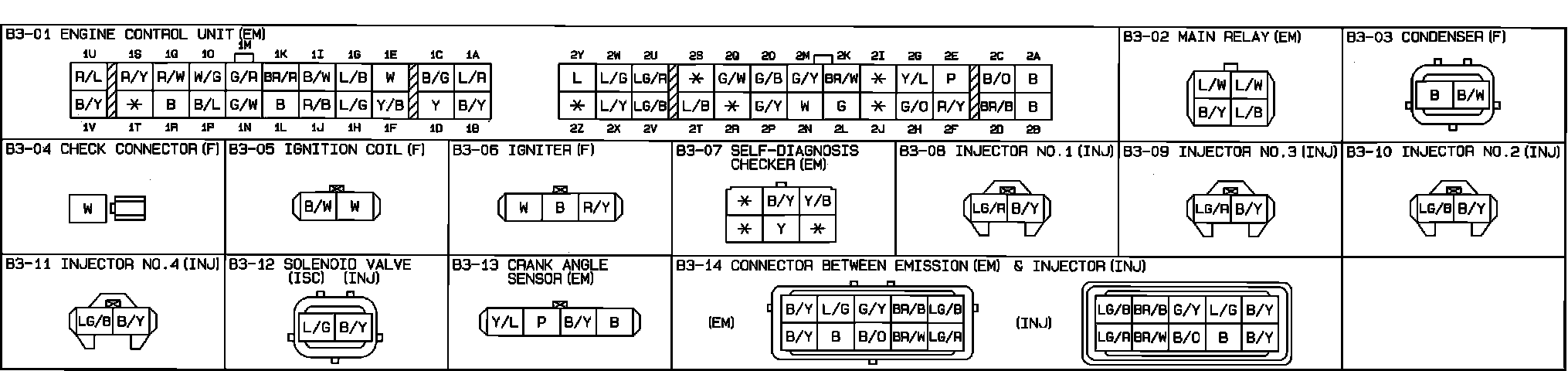

Engine Control System. Connector Identification:
