W/Carbureted Engine

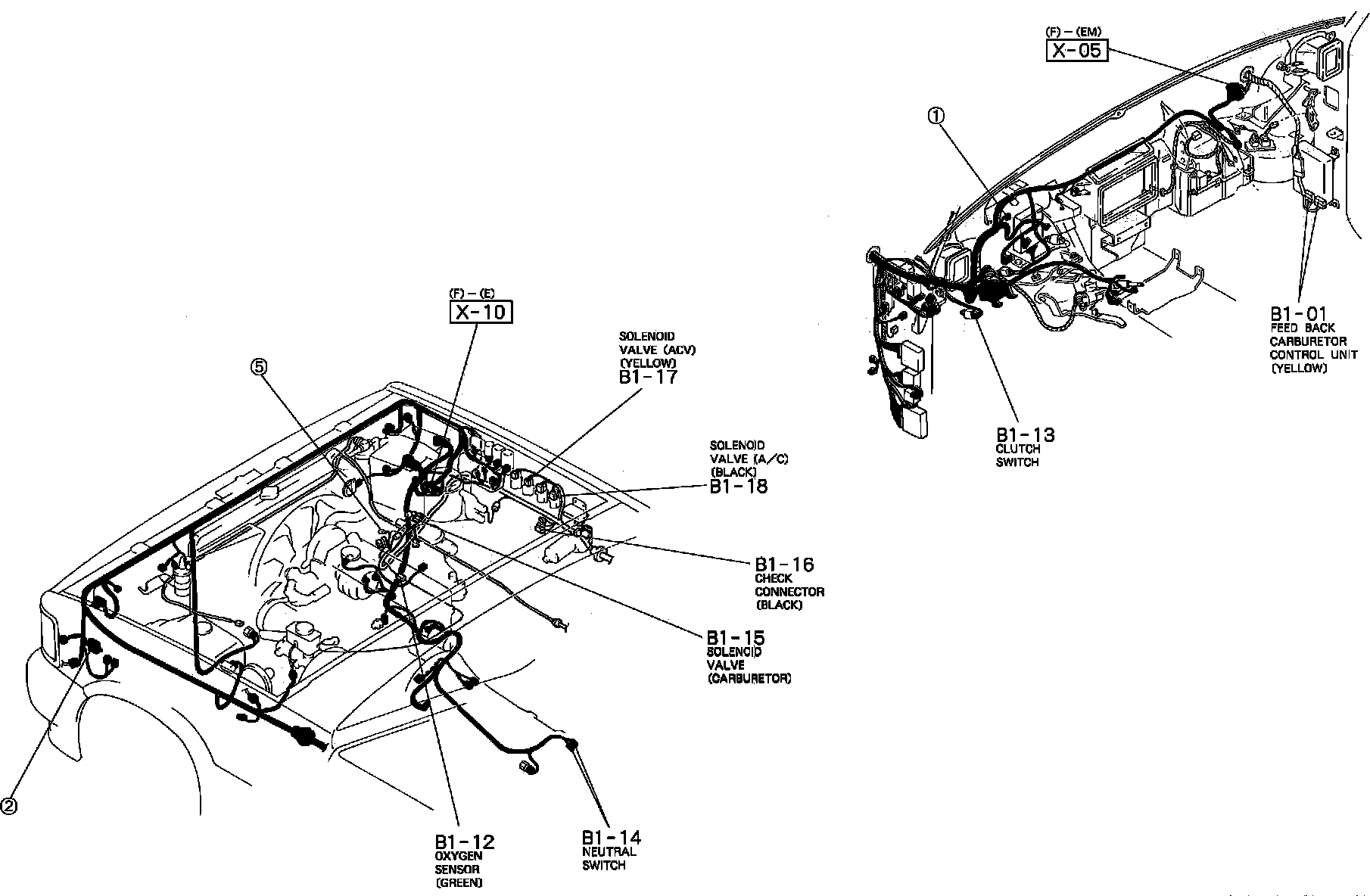

Ignition And Feed Back Carburetor Control System. Harness And Connector Locations:

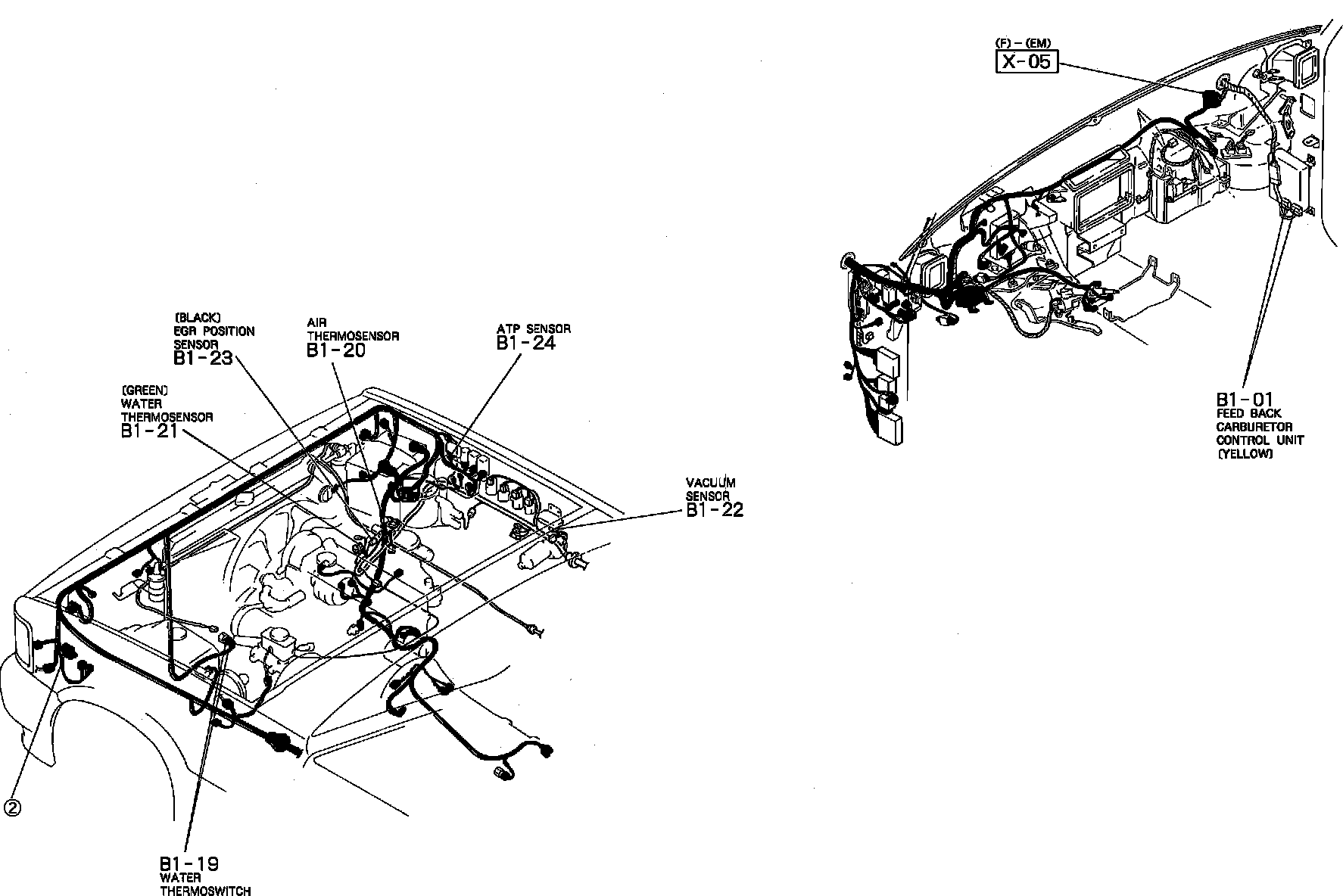

Feed Back Carburetor Control System. Harness And Connector Locations:

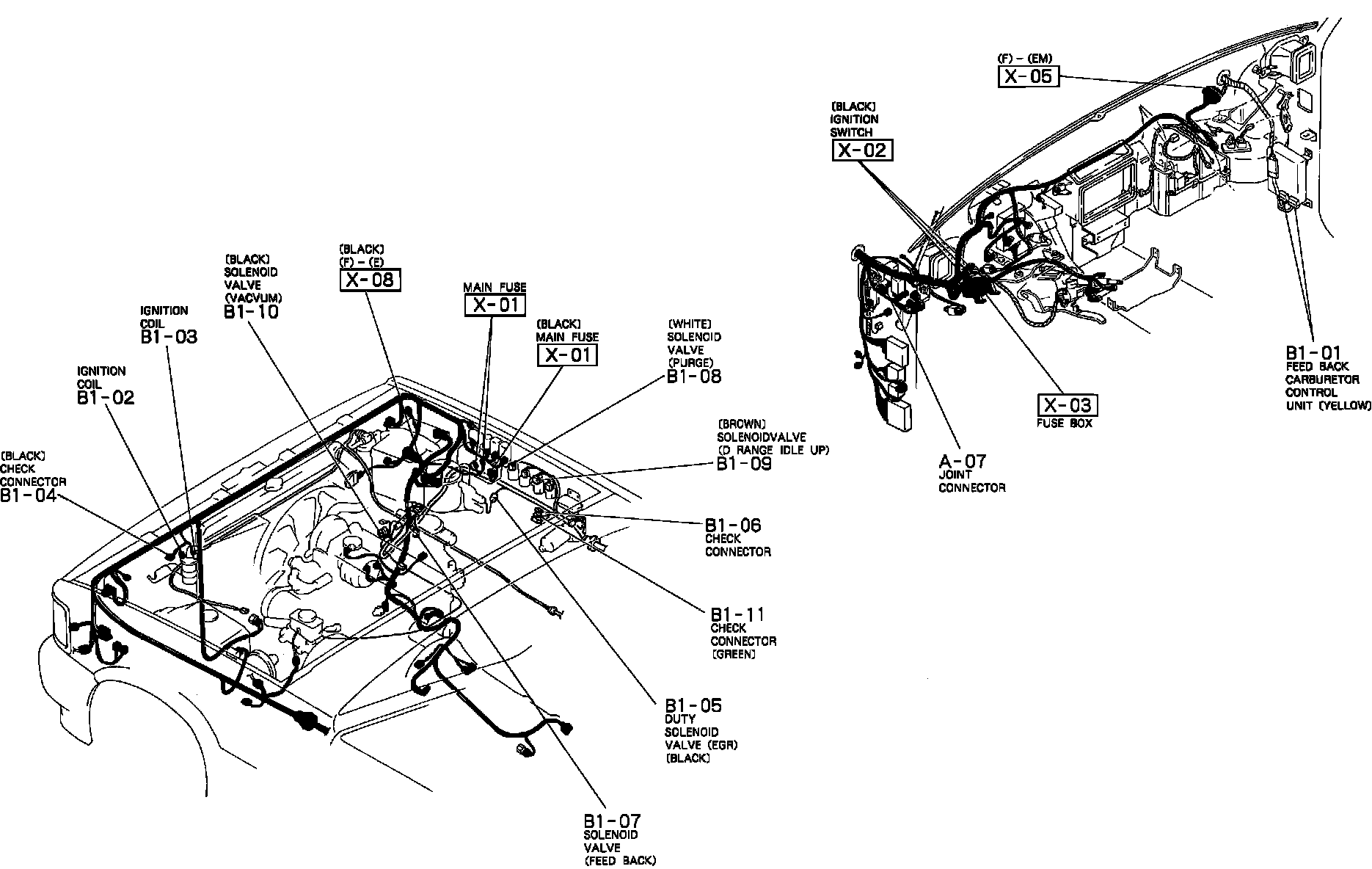

Feed Back Carburetor Control System. Harness And Connector Locations:
