Electronic Fuel Injection (EGI)

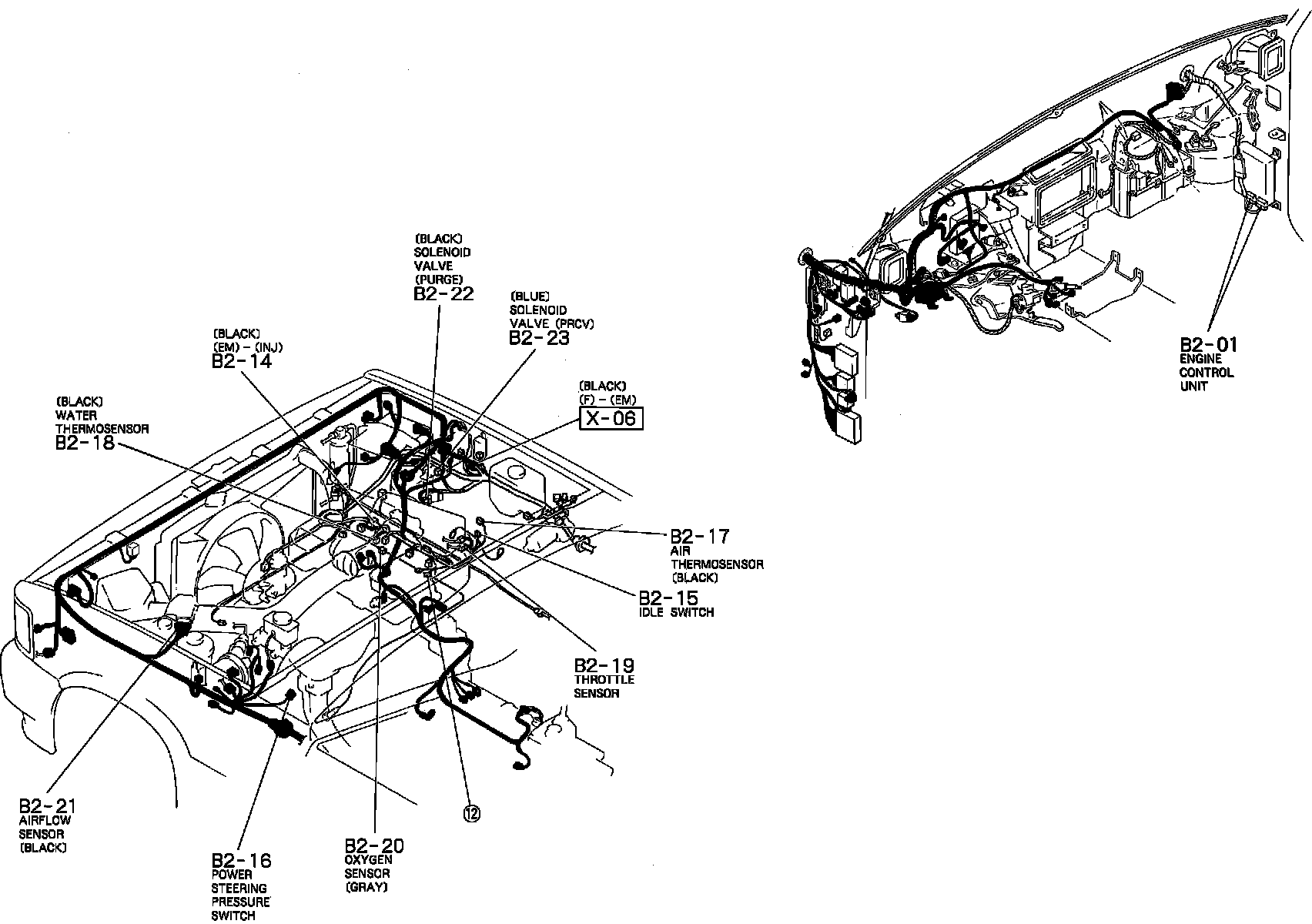

Ignition System And Engine Control System. EGI. Harness And Connector Locations:

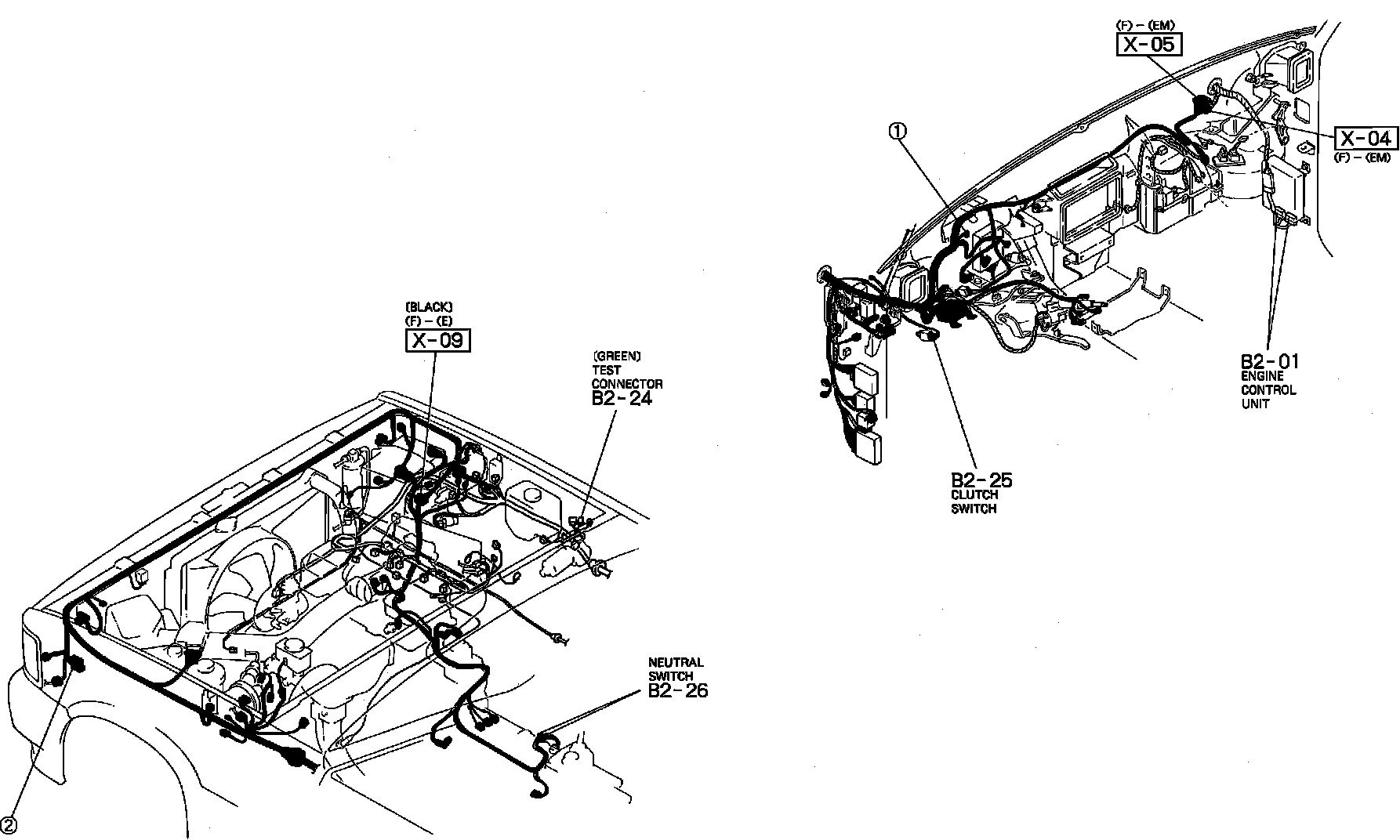

Engine Control System. EGI. Harness And Connector Locations:

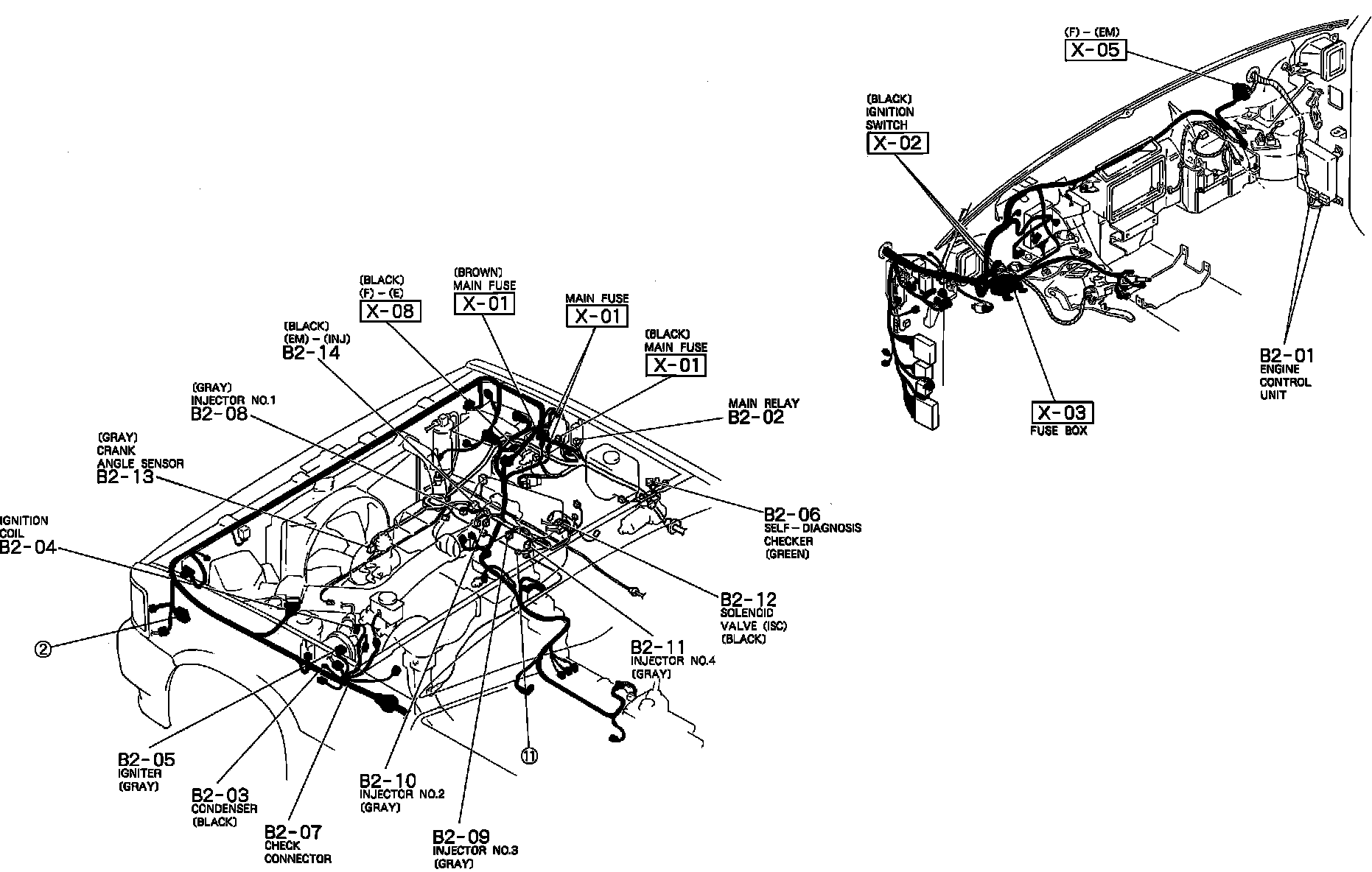

Engine Control System. EGI. Harness And Connector Locations:
