Component Locations

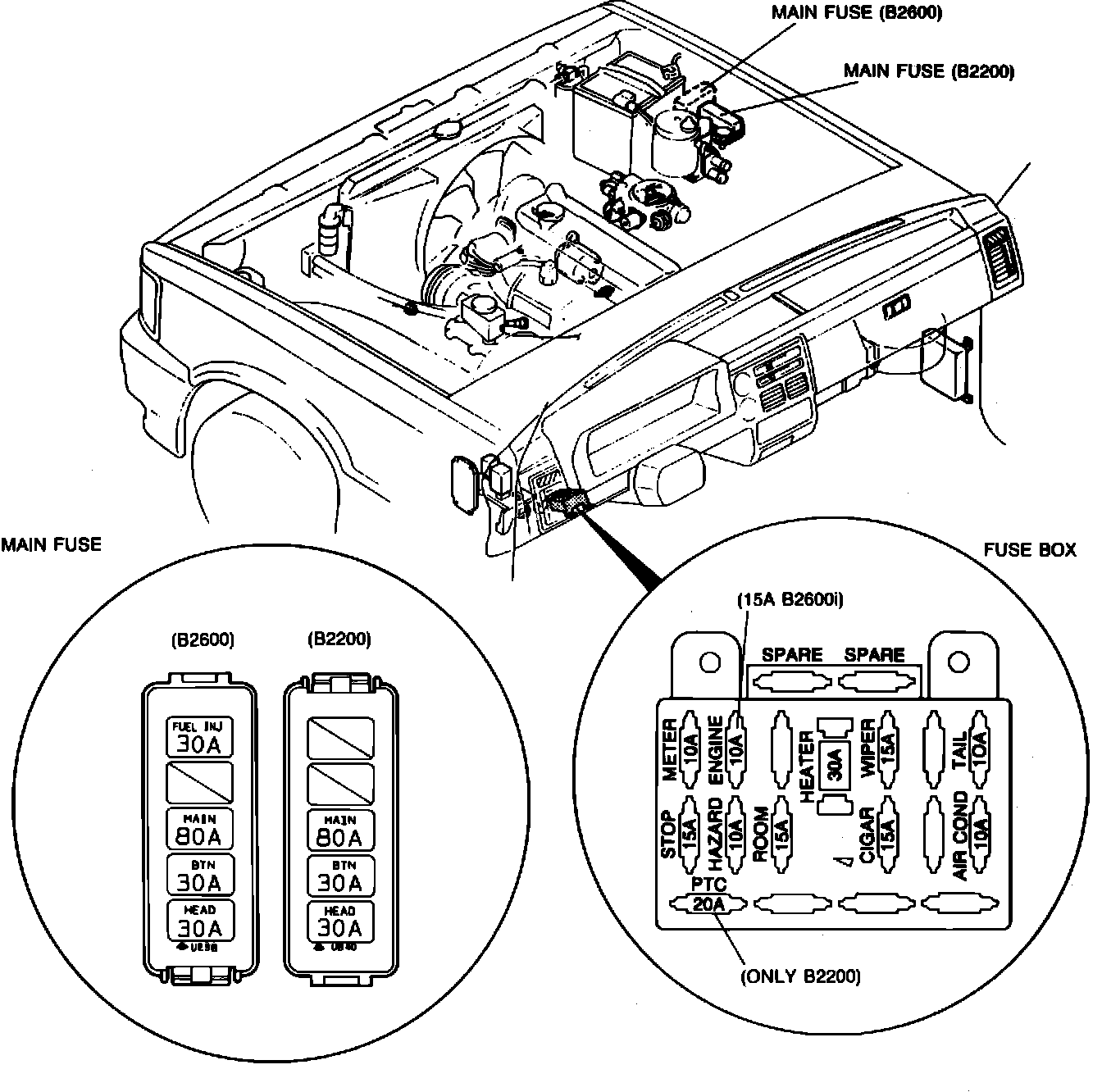

Fuse Panel:

The fuse panel is located under the left side of the instrument panel, left of the steering column. On 1991-92 models, a second fuse (main) panel is located in the engine compartment, near the battery.
The turn signal flasher is located on the relay panel behind the fuse panel inside the passenger compartment.
