Mazda Truck
>>
1991
>>
B Series Truck 2WD L4-2184cc 2.2L 2200 2-bbl
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Engine Control Module
>>
Fuel Injection
Fuel Injection

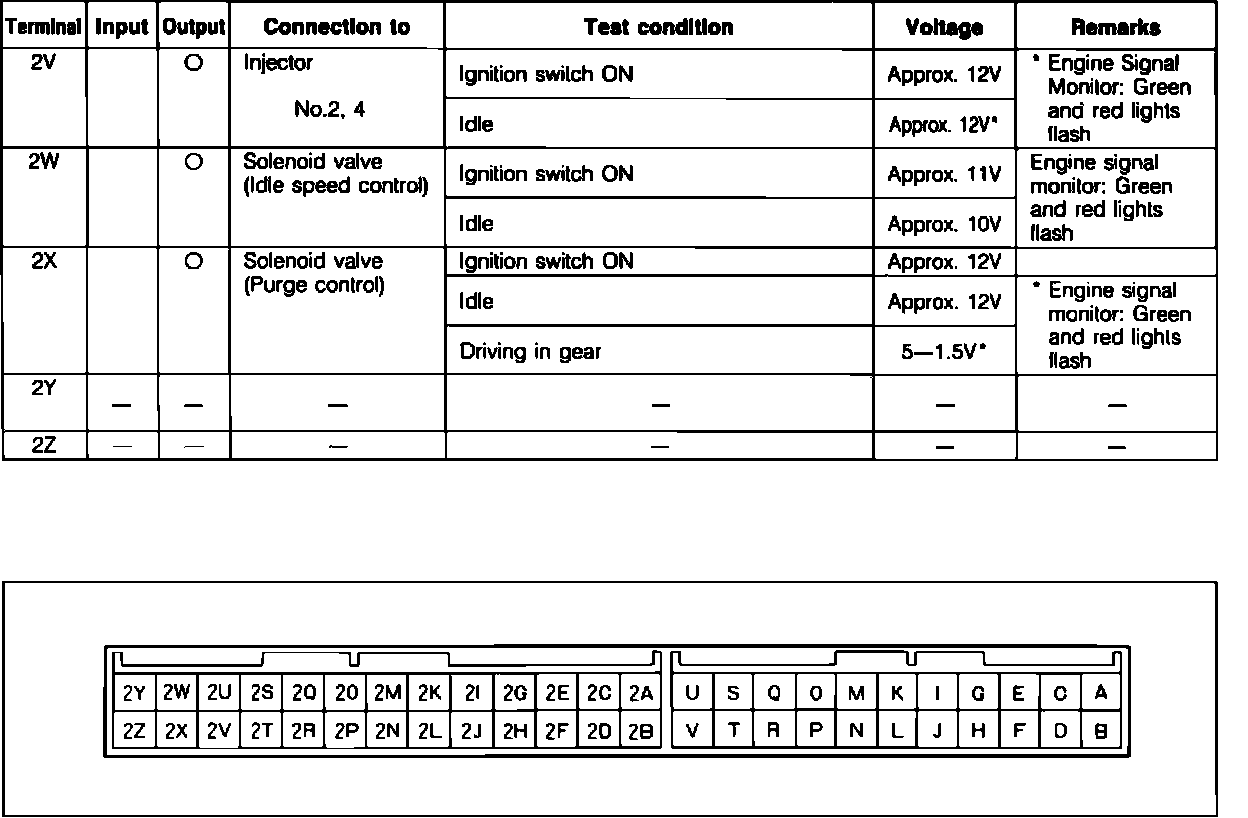

Engine Control System. EGI. ECU Pin Voltage Chart:

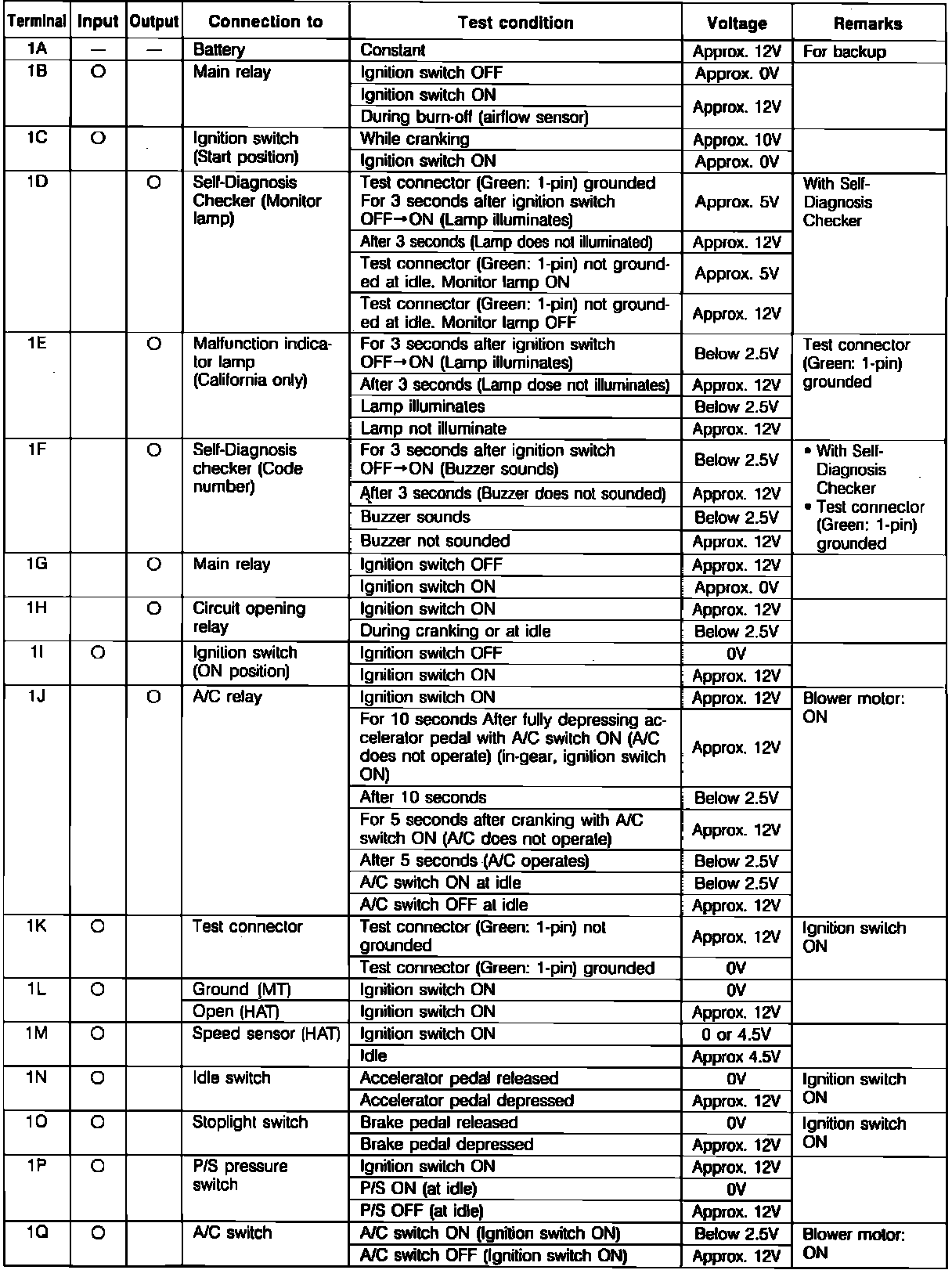

Engine Control System. EGI. ECU Pin Voltage Chart:

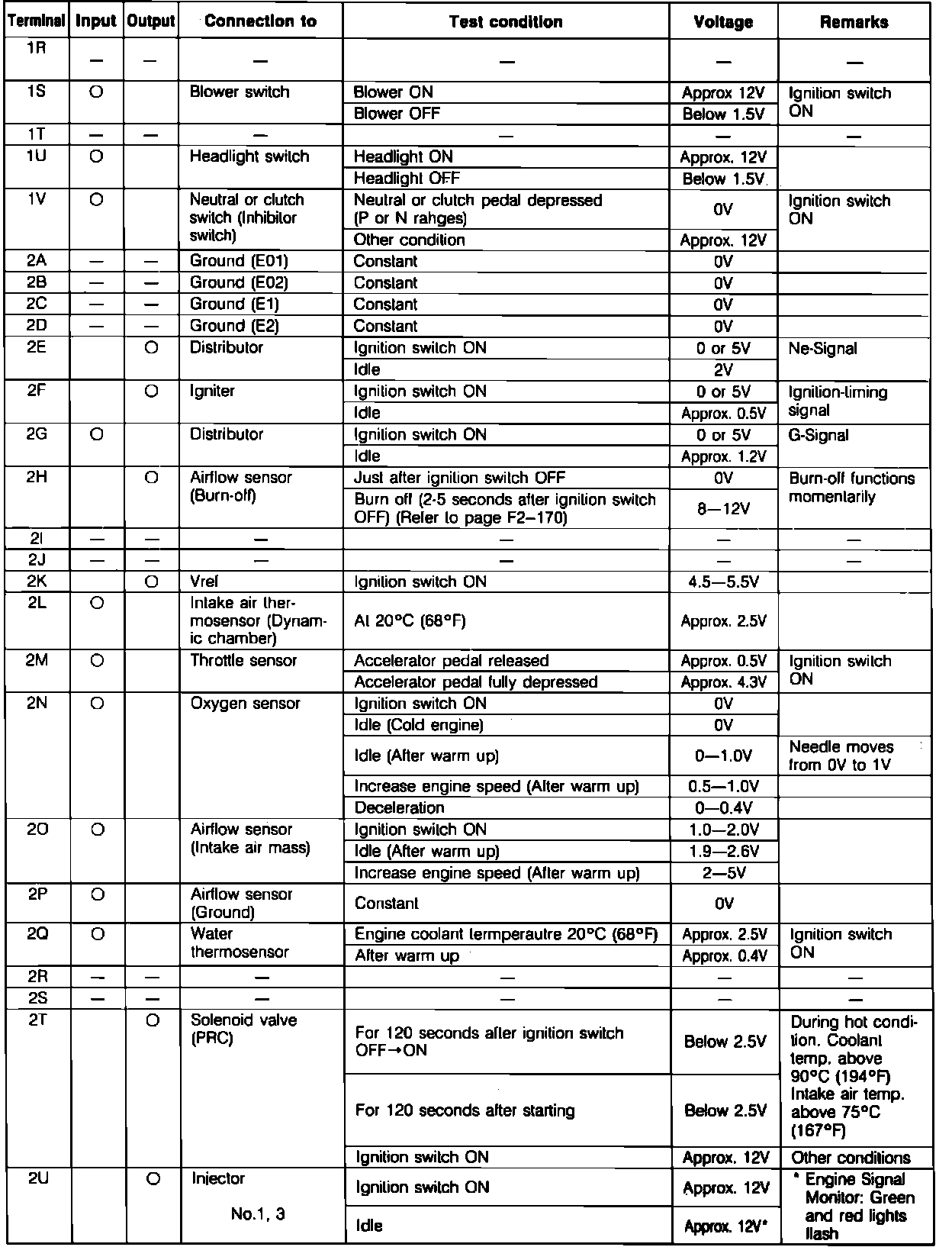

Engine Control System. EGI. ECU Pin Voltage Chart:
