Electronic Fuel Injection (EGI)
Electronic Fuel Injection (EGI)

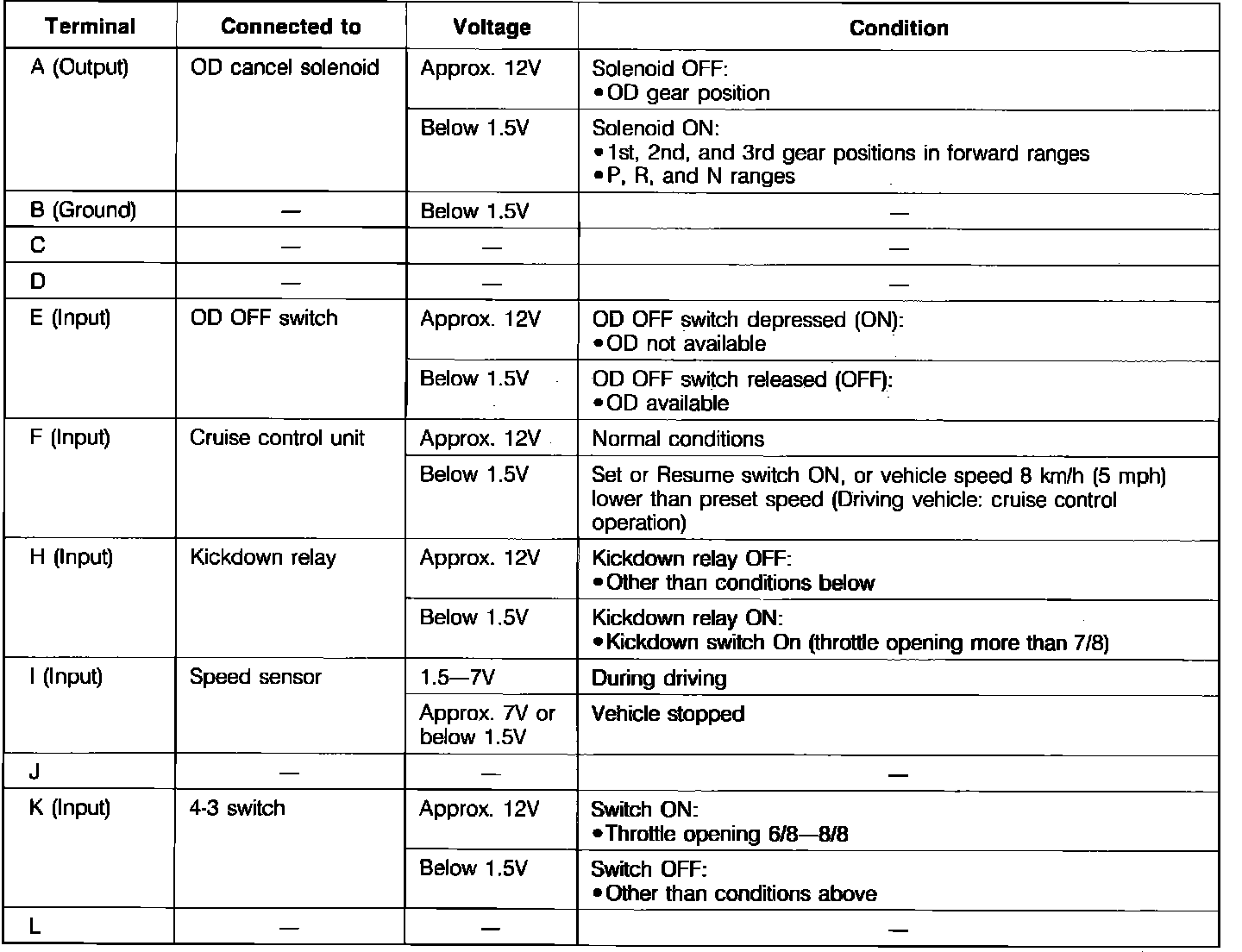

HAT Control System. EGI. ECU Pin Voltage Chart:
