Fuel Injected

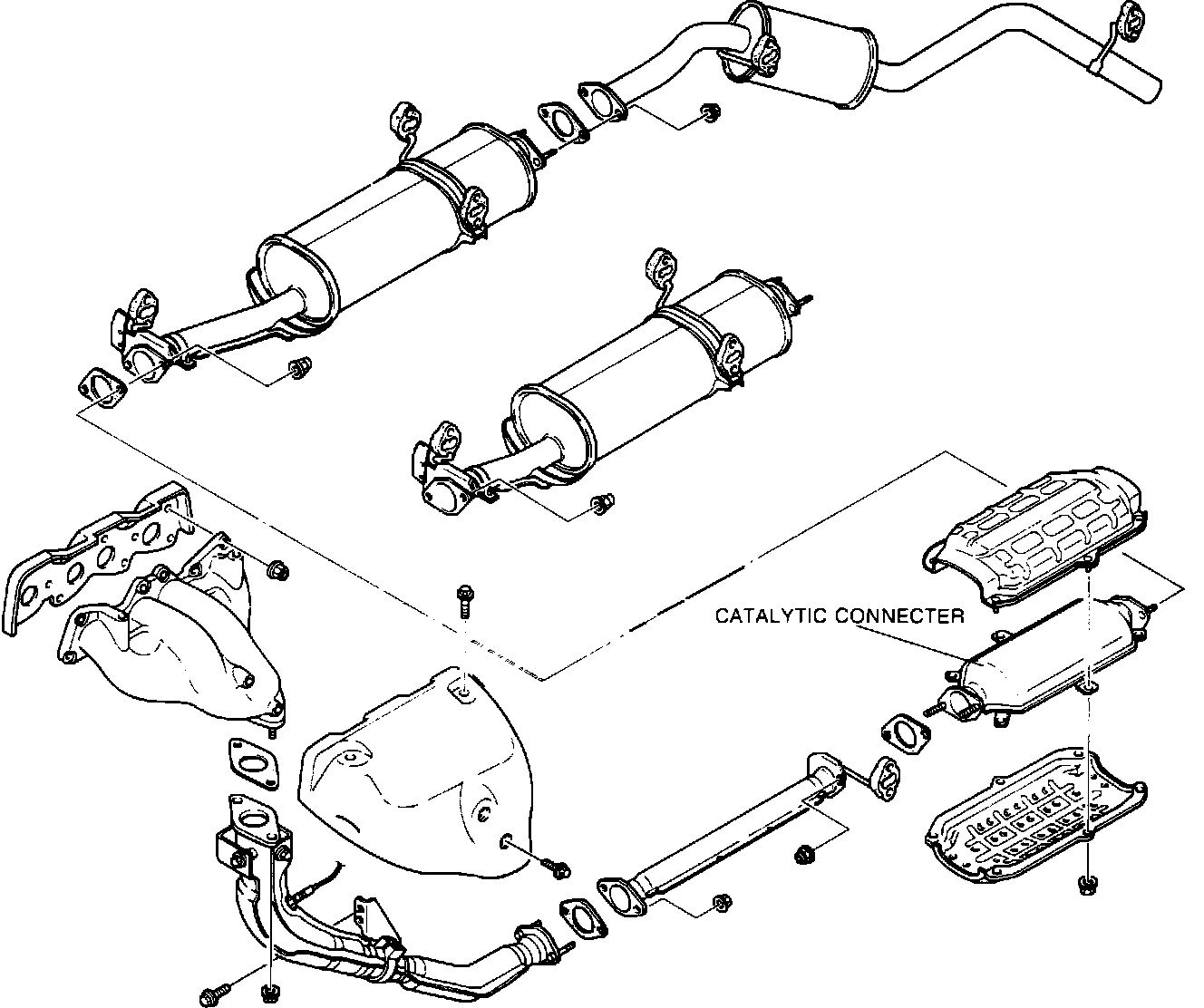

Exhaust System:






^ A three-way catalytic converter is used downstream from the exhaust manifold to reduce oxides of nitrogen (NOx) and oxidize hydrocarbons (HC) and carbon monoxide (CO).
^ The converter contains catalyst elements platinum, rhodium and palladium, which promote oxidation and reduction reactions at high temperatures.
^ Emissions are converted into carbon dioxide, water vapor and nitrogen.
