Throttle Full Close Switch: Description and Operation

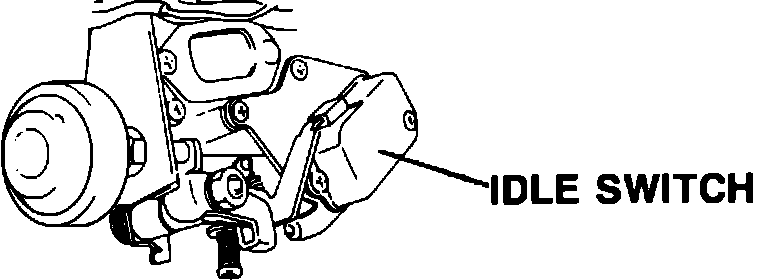

Idle Switch:
Located on the carburetor, the "ON/OFF" idle switch provides a throttle position signal to the ECU. It is "OFF" at idle (throttle closed) and "ON" above 1000-1200 rpm.
Located on the carburetor, the "ON/OFF" idle switch provides a throttle position signal to the ECU. It is "OFF" at idle (throttle closed) and "ON" above 1000-1200 rpm.
