Carburetor

Idle Switch Adjustment:

1. Warm up engine and run at idle.
2. Connect tachometer.

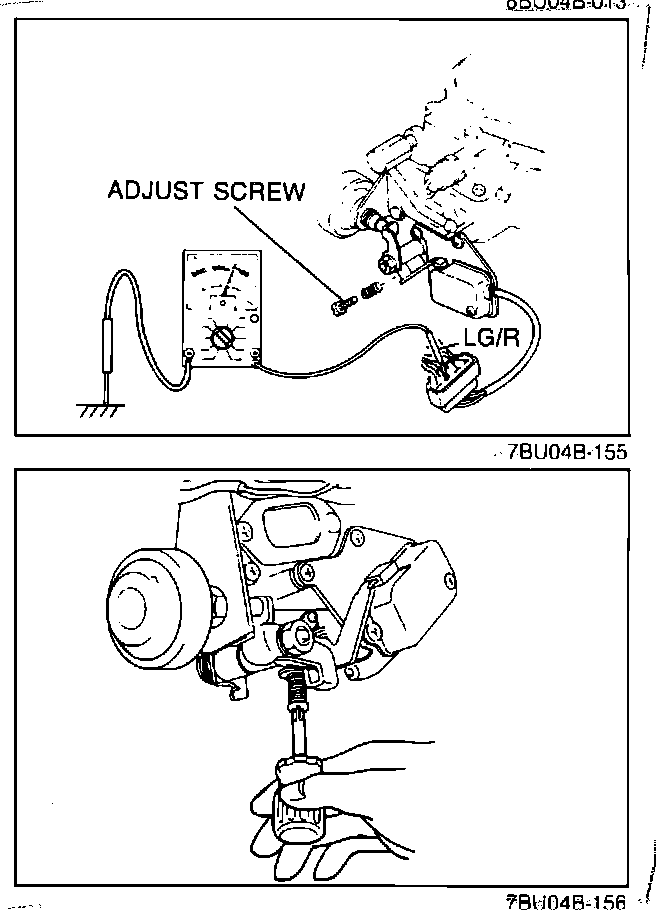

3. Connect voltmeter to idle switch terminal (LG/R).
4. Increase engine speed to over 2000 rpm, then decelerate gradually and verify that voltmeter indicates as follows:

AT IDLE: approx. 12V

ABOVE 1000 - 1200 rpm: less than 1.5V

5. If not as specified, correct with adjust screw.
