Electrical Diagrams

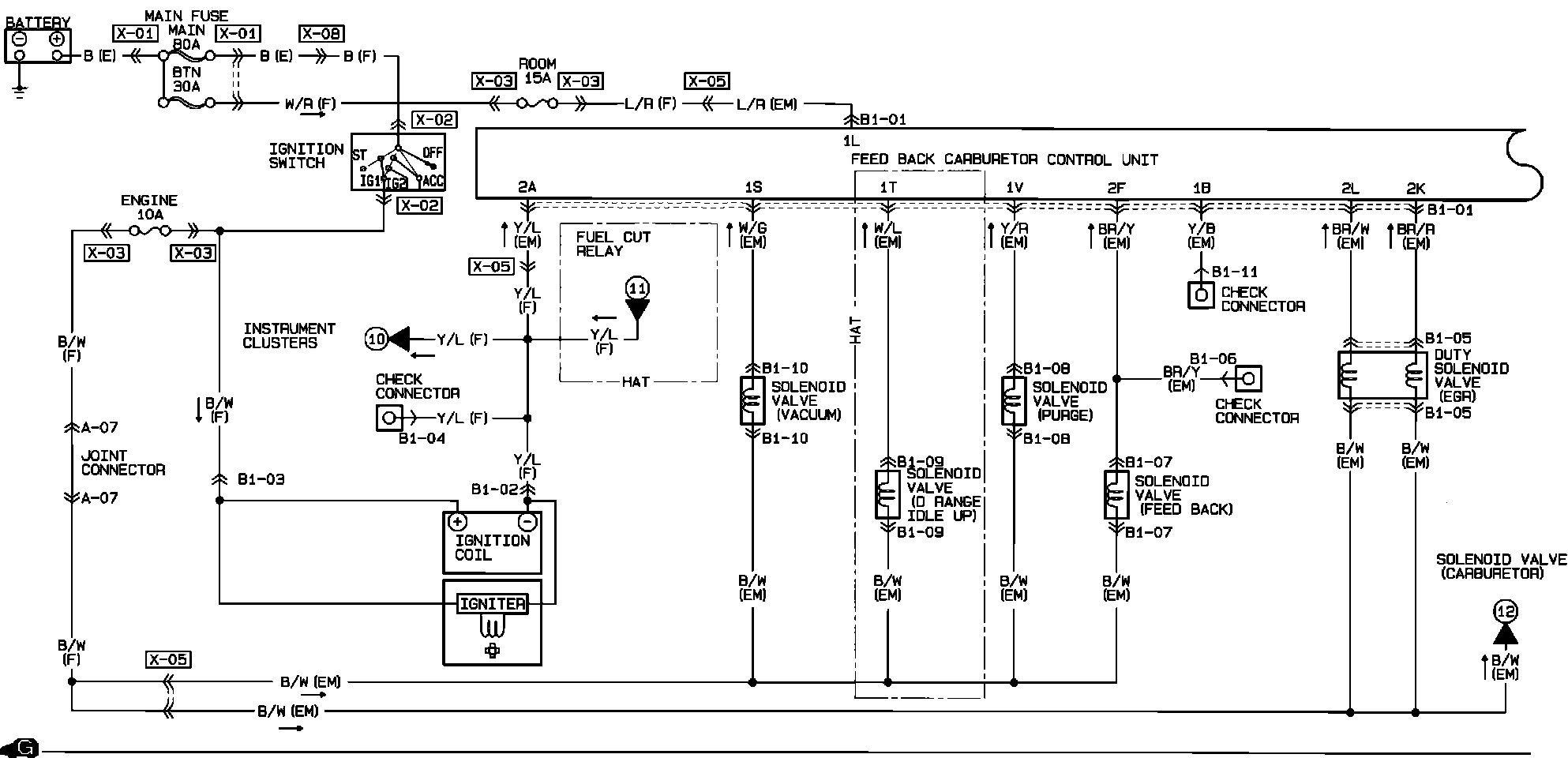

Ignition And Feed Back Carburetor Control System:

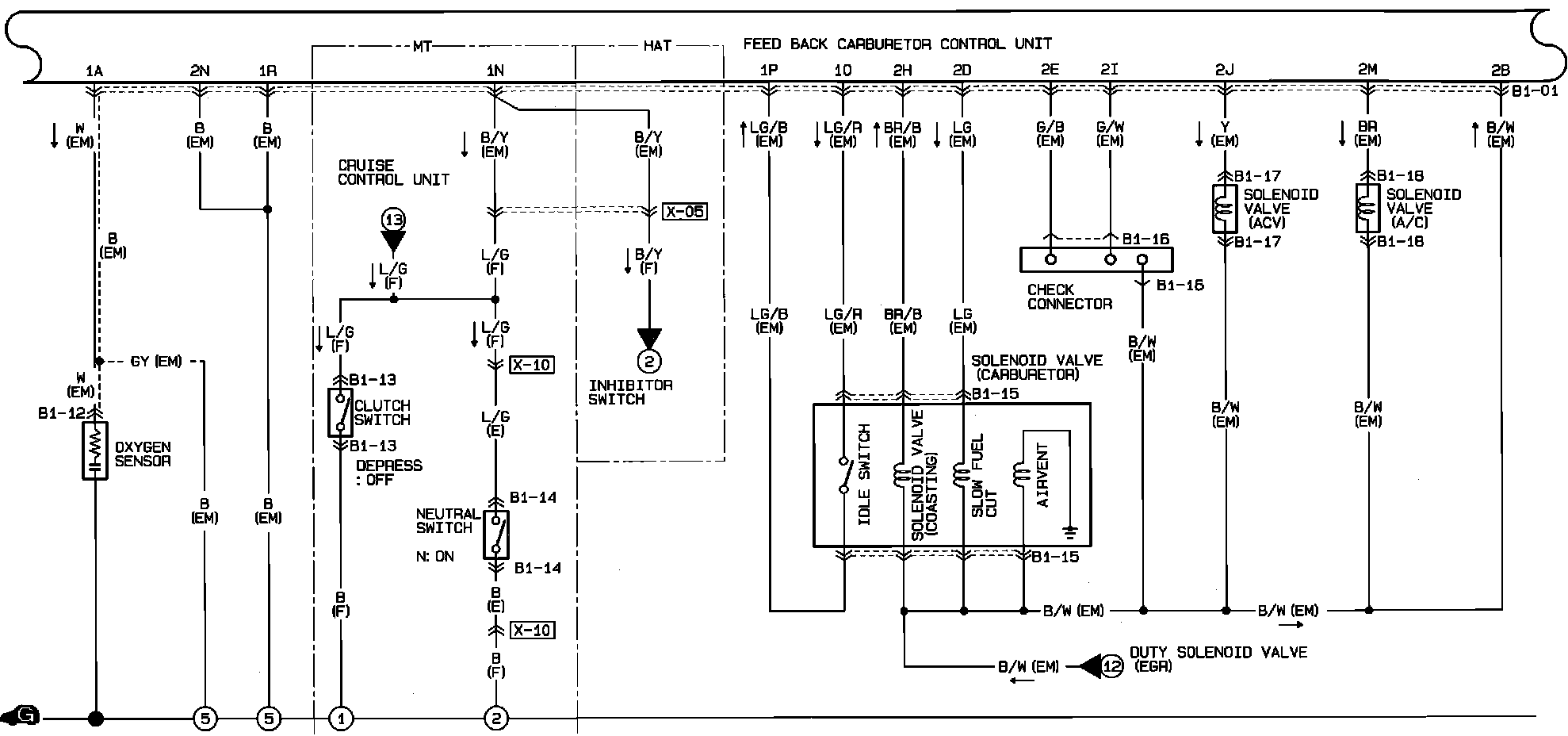

Feed Back Carburetor Control System:



Feed Back Carburetor Control System.:
