Home
>>
Mazda Truck
>>
1991
>>
B Series Truck 2WD L4-2184cc 2.2L 2200 2-bbl
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Connector Locations
Connector Locations

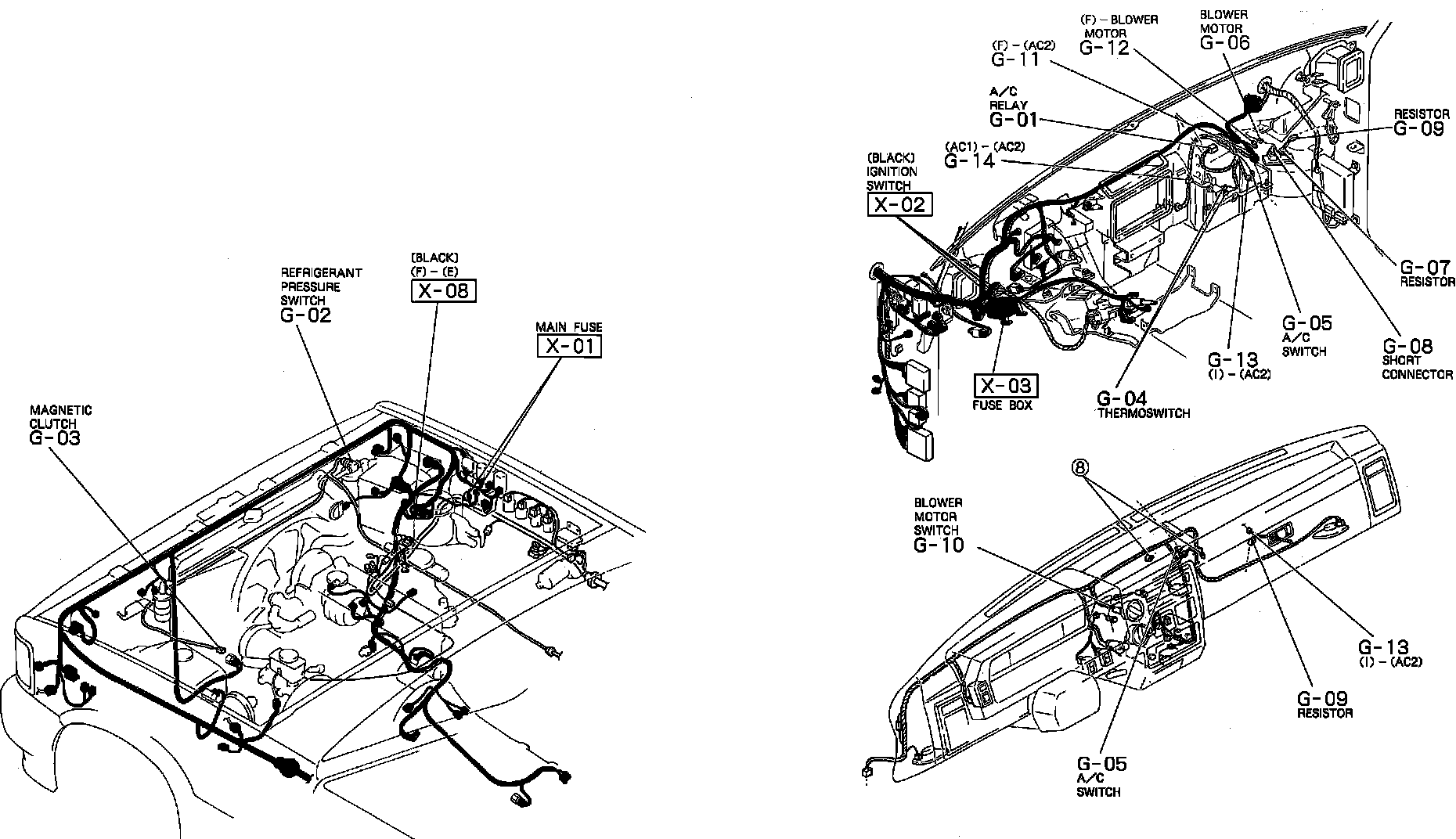

Heater And Air Conditioning. Harness And Connector Locations:
