Evaporator Core: Testing and Inspection

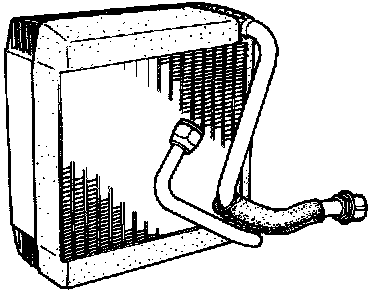

Evaporator Inspection





1. Check the evaporator fins for blockage.
If the fins are clogged, clean them by compressed air.
2. Check the fittings for cracks or other damage.
3. Replace the evaporator if necessary.

Caution: Never use water to clean the evaporator.
