Blower Motor: Testing and Inspection

Blower Motor Inspection
1. Remove the ECU.

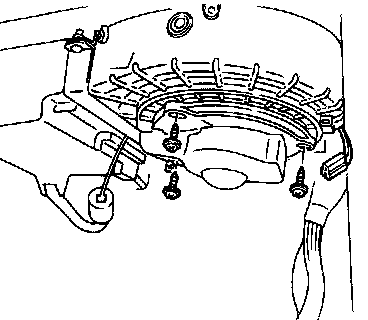

2. Remove the screws and disconnect the blower motor connector.
3. Remove the motor cover.

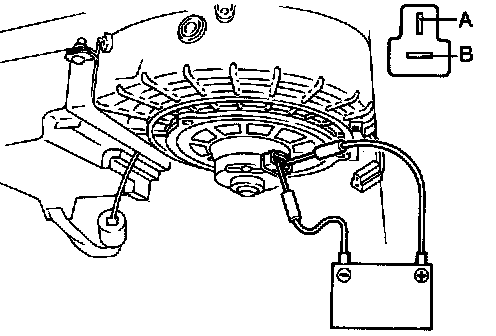

4. Check that the blower motor runs when connecting 12V to terminal B and grounding terminal A.
5. If the blower motor does not run, replace it.
