Blower Motor Resistor: Testing and Inspection

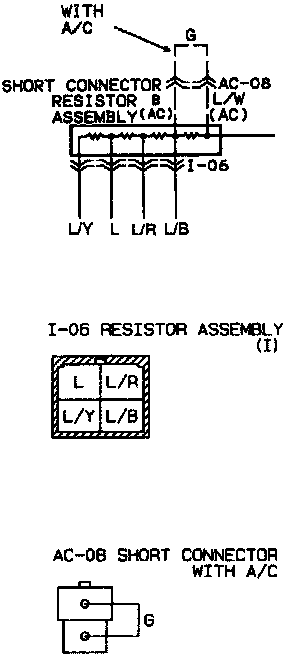

Resistor Assembly Inspection

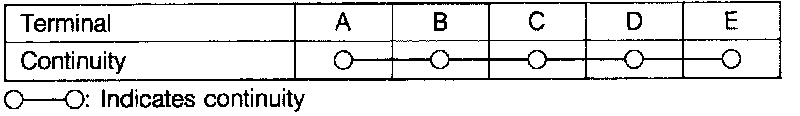

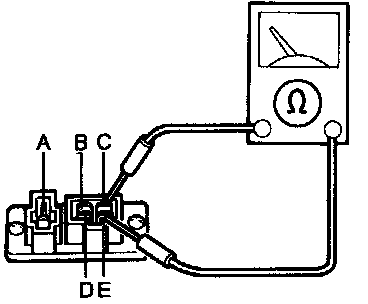

- Check for continuity between terminals of the resistor assembly.

Note: Set the ohmmeter to the x1OOO range.

- If not as specified, replace the resistor assembly.
