Blower Motor Resistor: Service and Repair

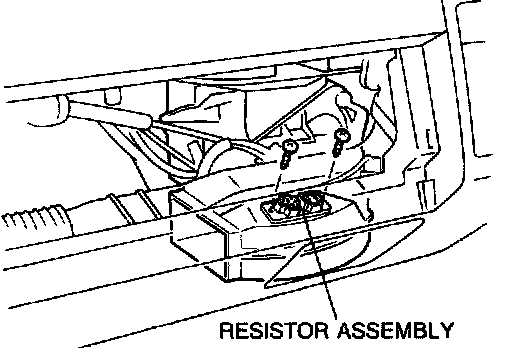

Resistor Assembly Removal
1. Remove the glove compartment.
2. Disconnect the resistor assembly connectors.



3. Remove the screws and the resistor assembly.

Installation
- Install in the reverse order of removal.
