Mazda Truck
>>
1991
>>
B Series Truck 2WD L4-2184cc 2.2L 2200 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Manual Transmission/Transaxle
>>

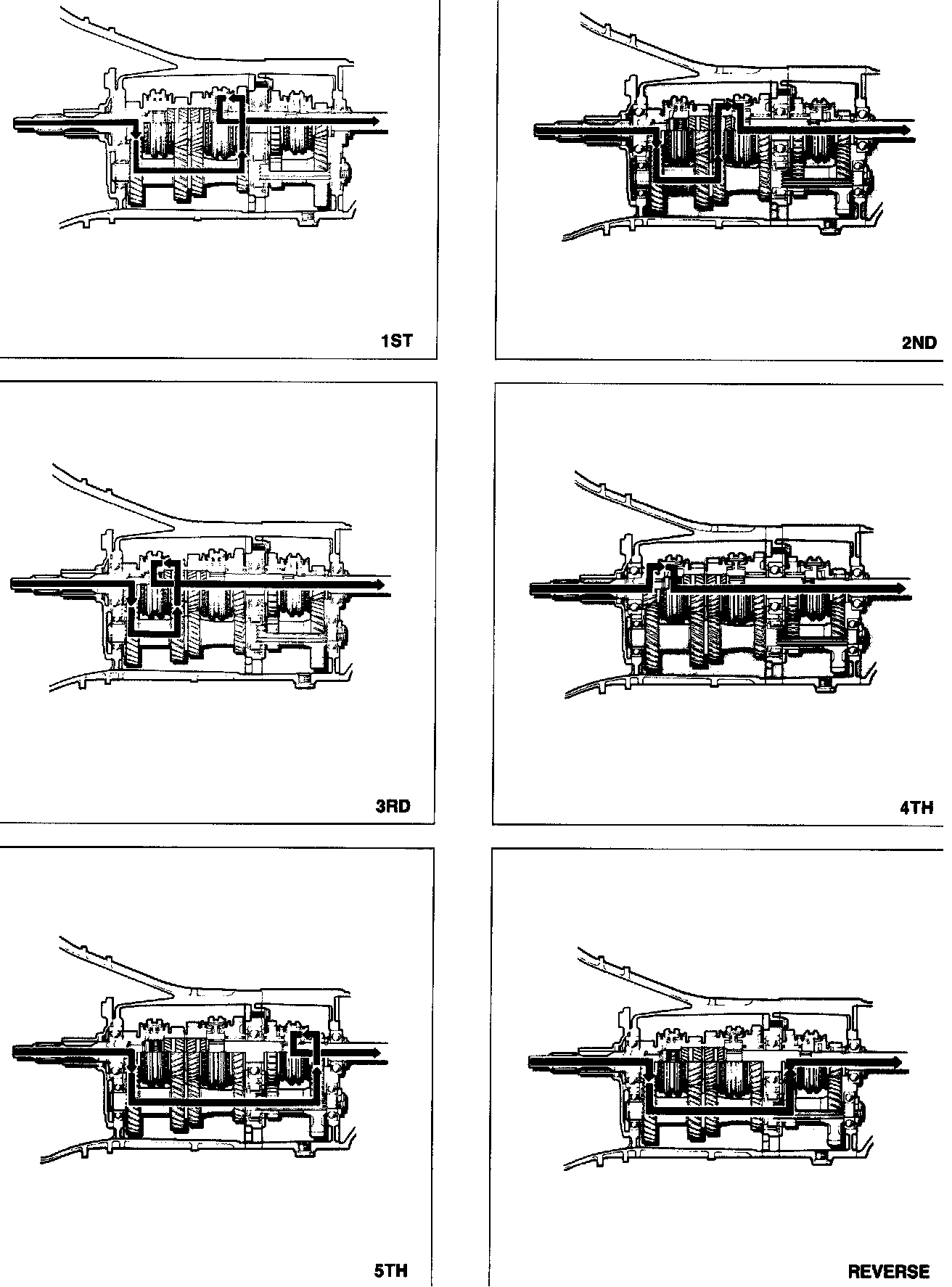

Power Flow
Power Flow
POWER FLOW
