Power Steering Pump

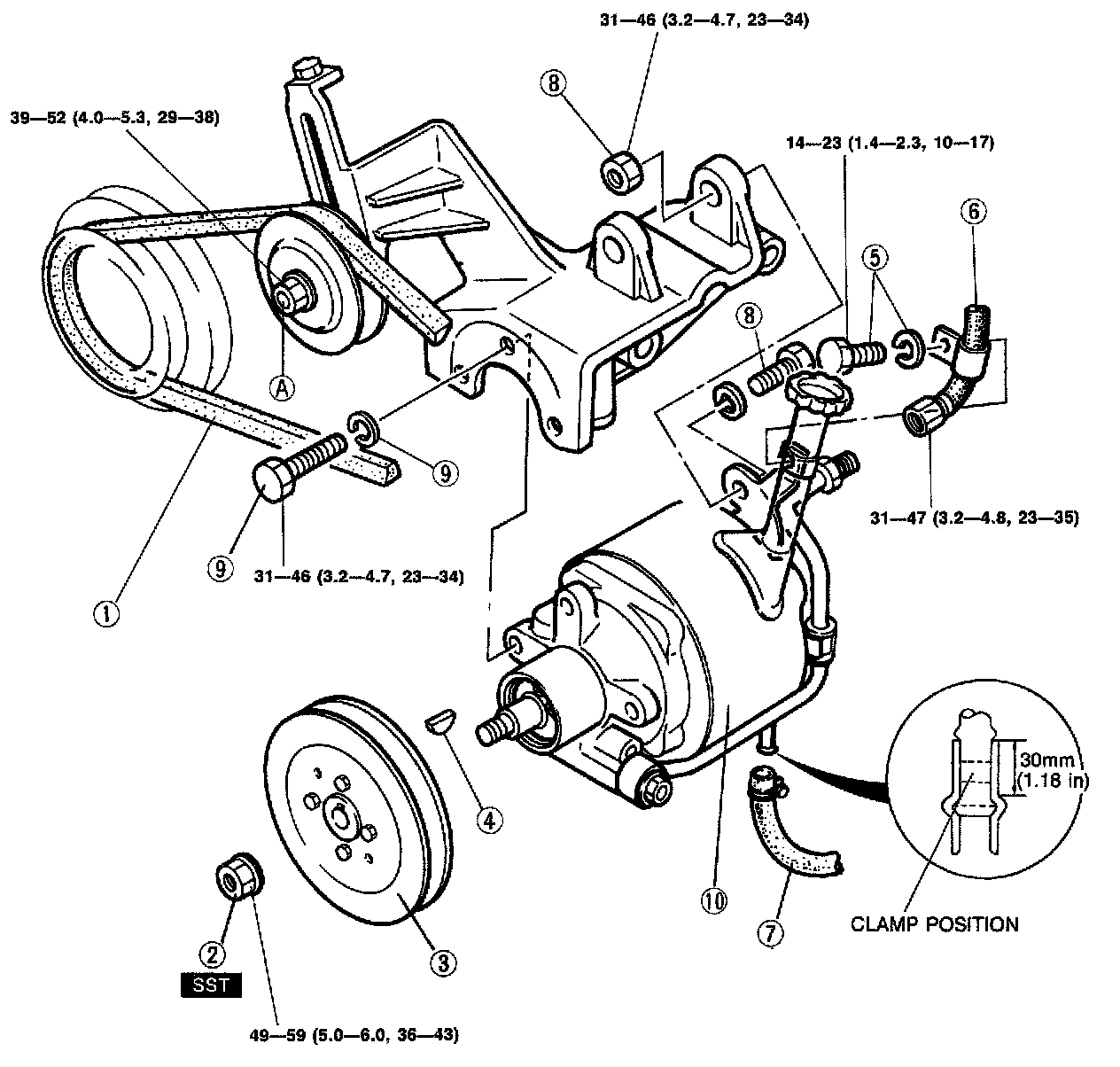

Power steering pump






1. Oil pump drive belt
2. Locknut
3. Oil pump pulley
4. Key
5. Bolt and washer
6. Pressure hose
7. Return hose
8. Bolt, washer, and nut
9. Bolt and washer
10. Oil pump assembly
