Computers and Control Systems

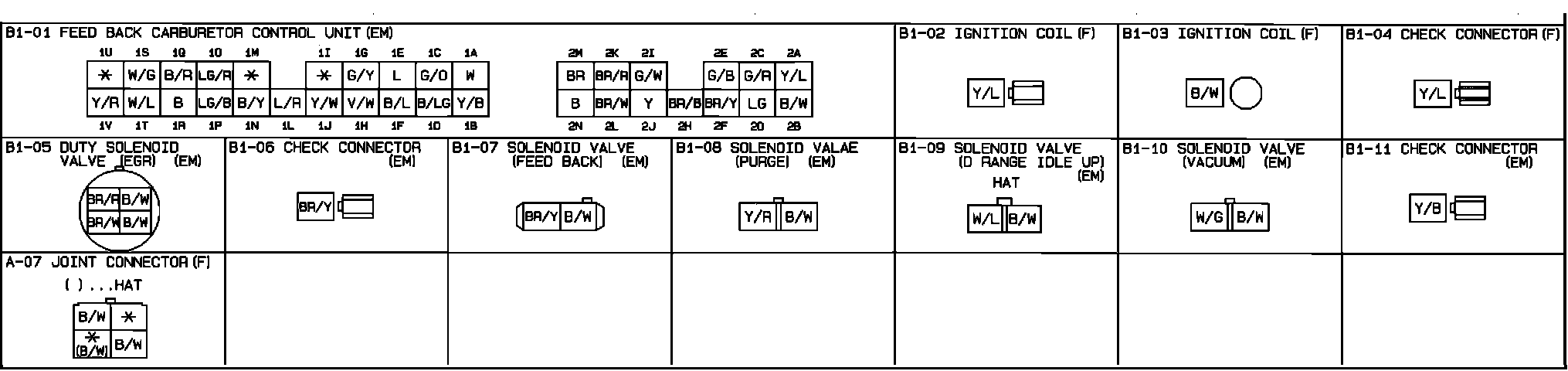

Ignition And Feed Back Carburetor Control System. Connector Identification:

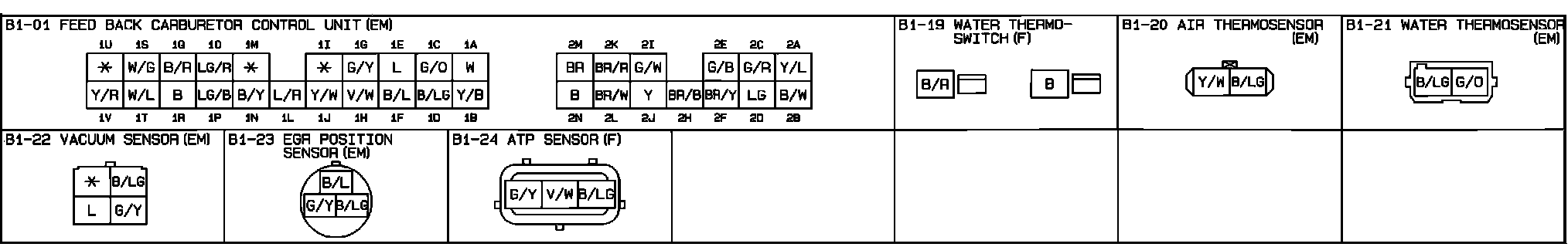

Feed Back Carburetor Control System. Connector Identification:

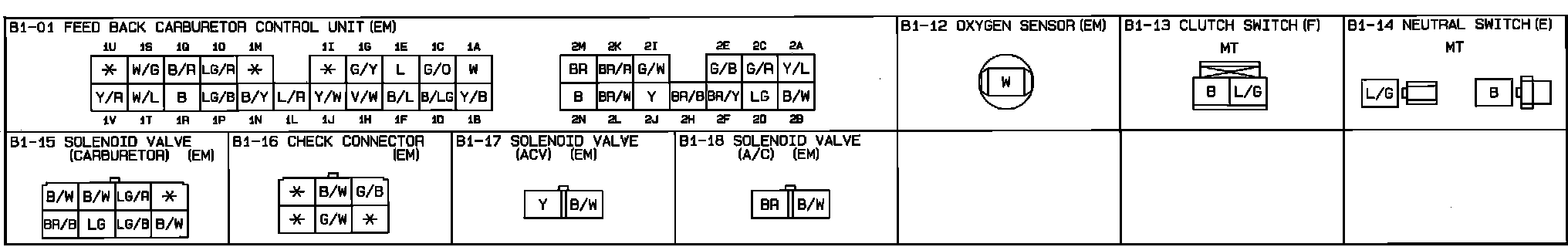

Feed Back Carburetor Control System. Connector Identification:
