Removal/Installation

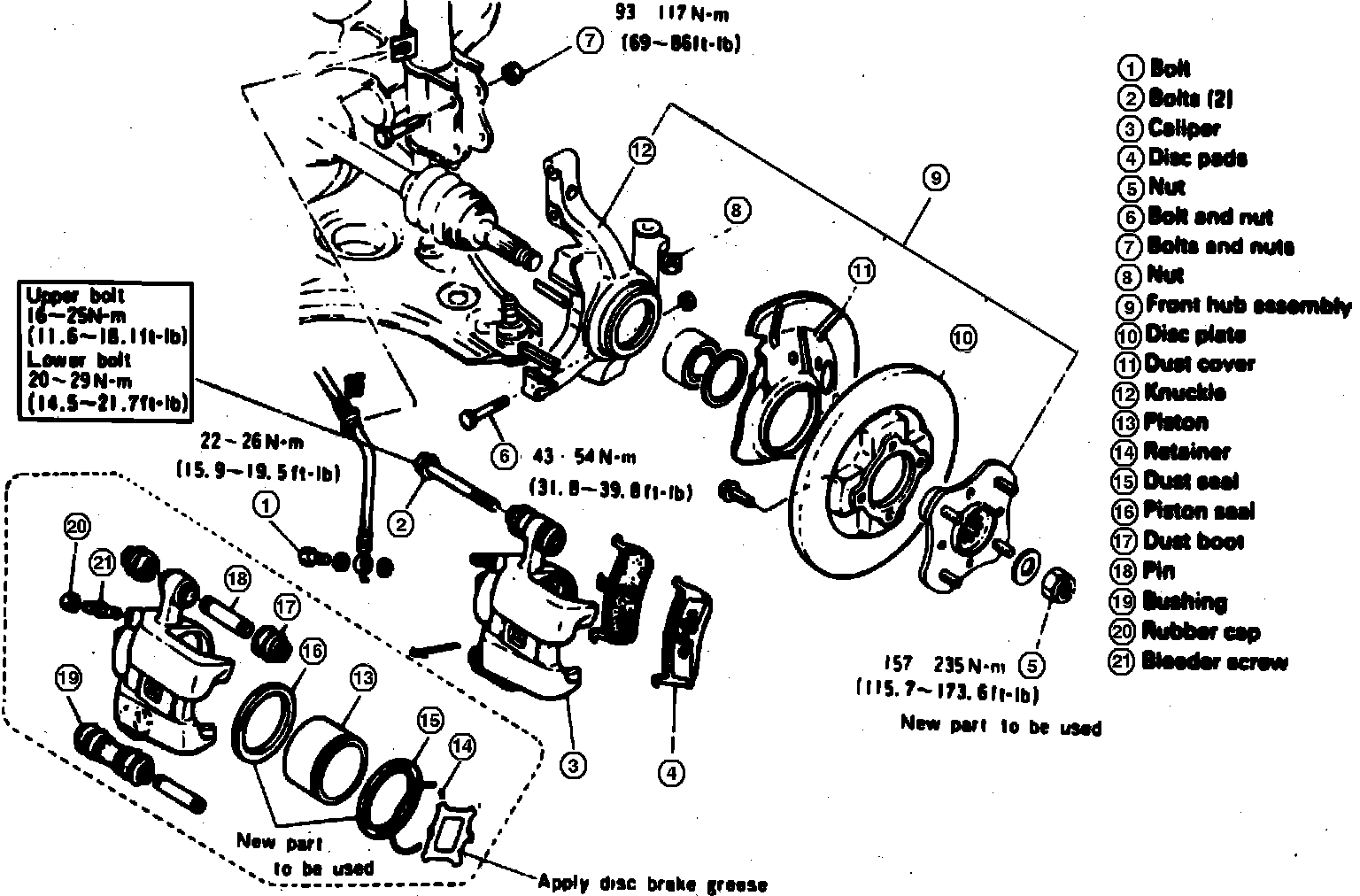

Fig. 4 Front Disc Brake Assembly.:

1. Raise and support vehicle, then remove front wheel.
2. Remove brake hose clip and attaching bolt, then disconnect and cap brake hose from caliper.
3. Remove lockpin bolt, then the caliper assembly, Fig. 4.
4. Reverse procedure to install.
