Powertrain Management: Description and Operation

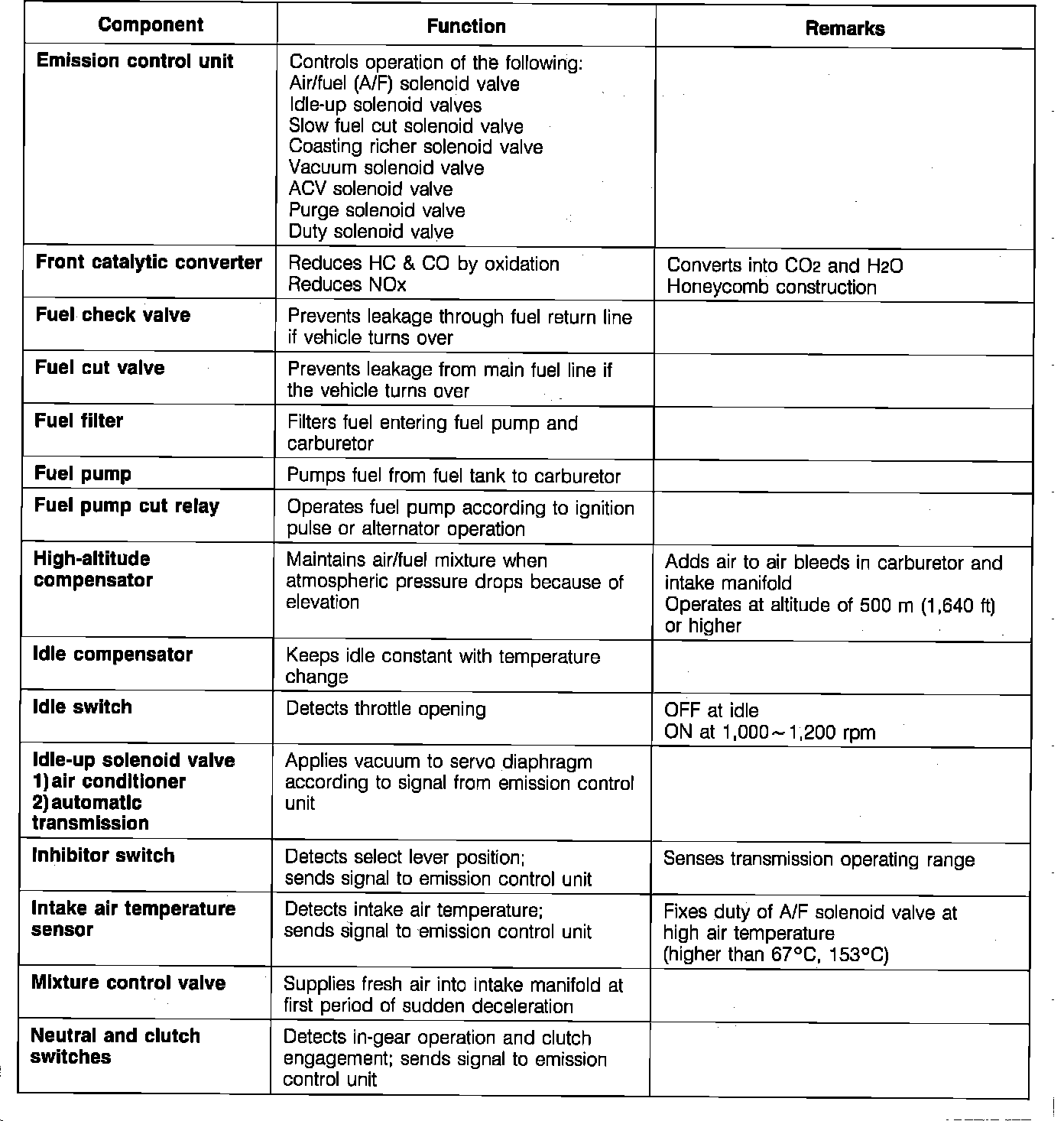

Fig. 1a Component Operation:

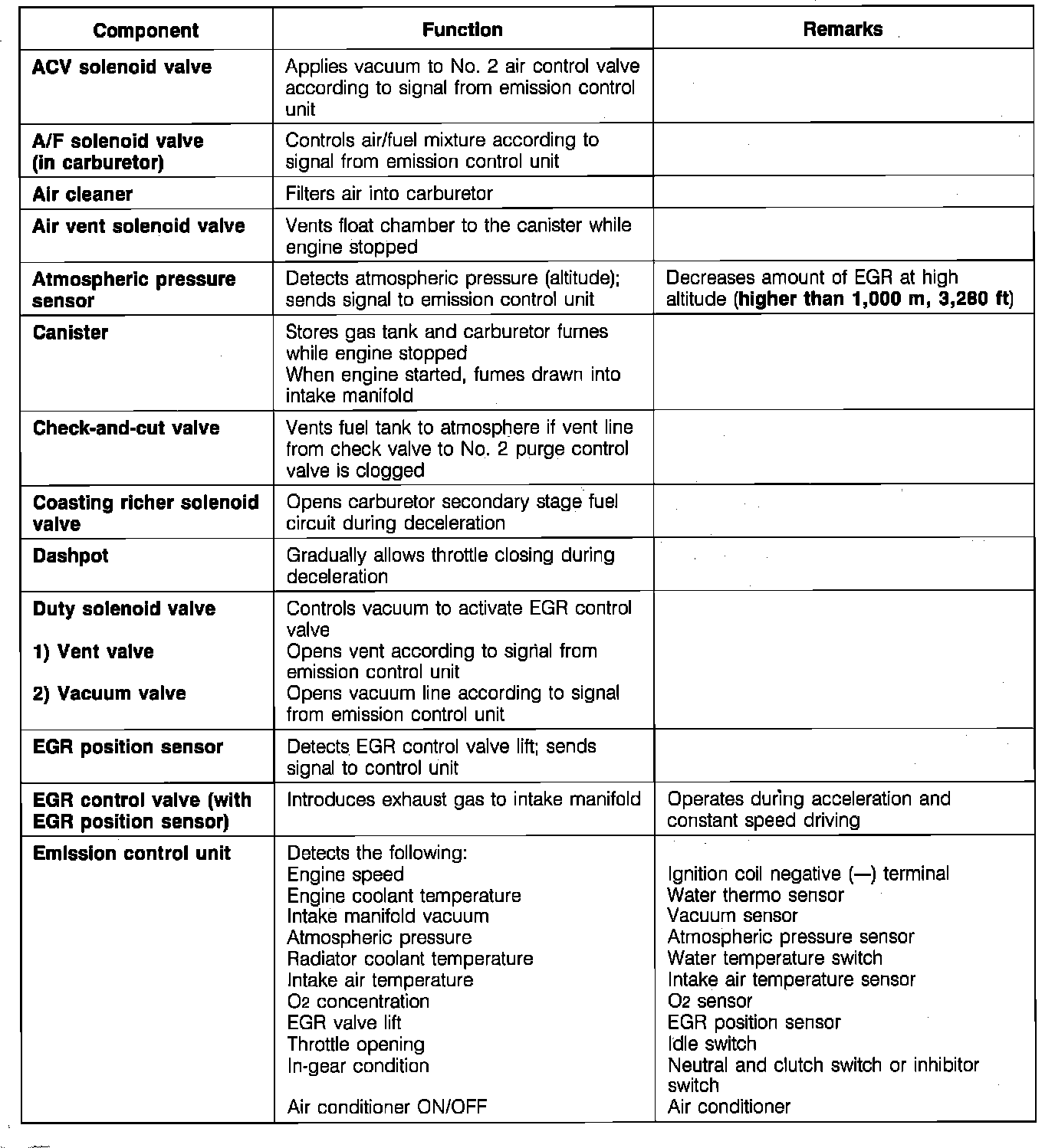

Fig. 1b Component Operation:

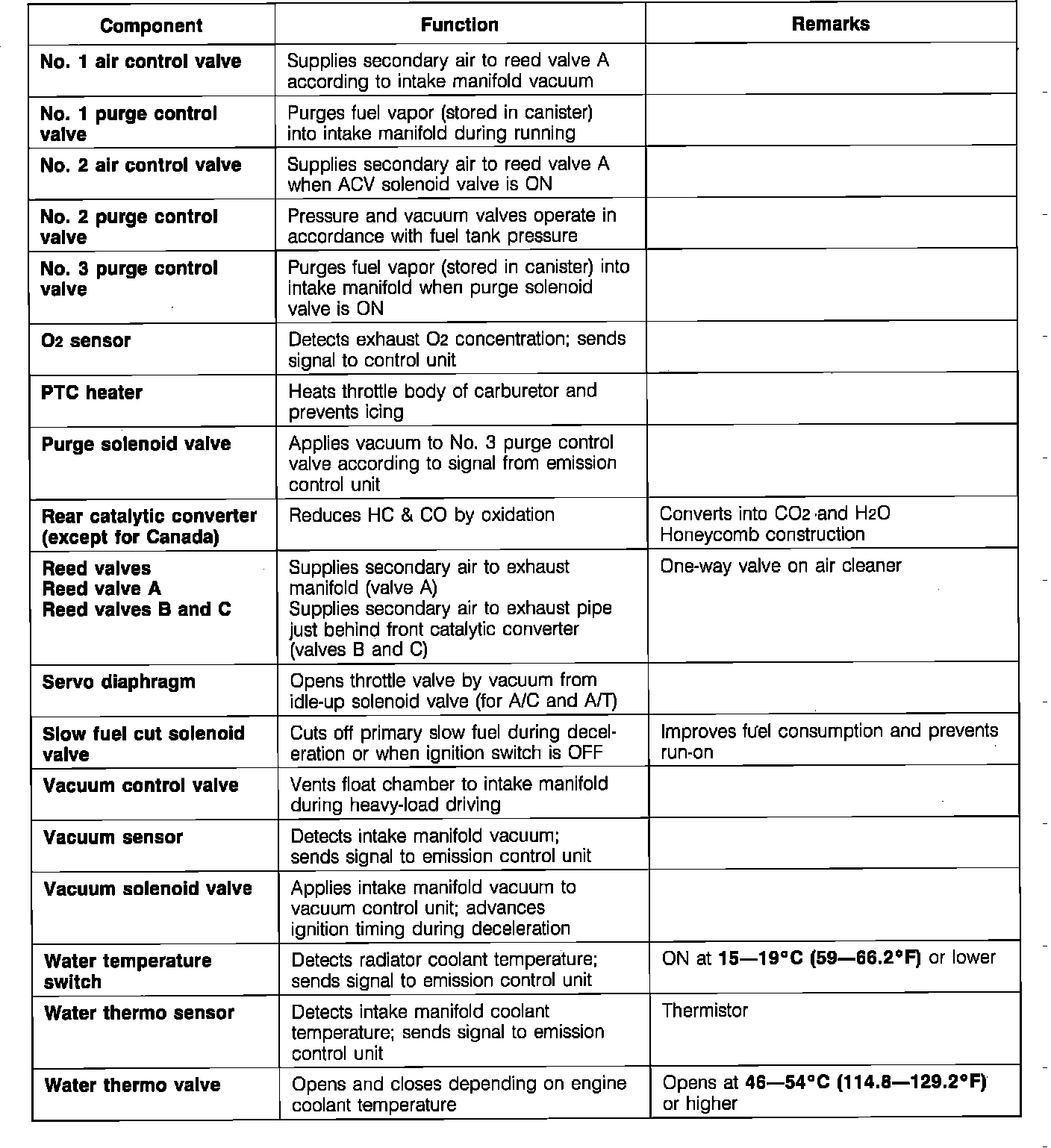

Fig. 1c Component Operation:
