Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda Truck
>>
1988
>>
B Series Truck L4-2184cc 2.2L 2200
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

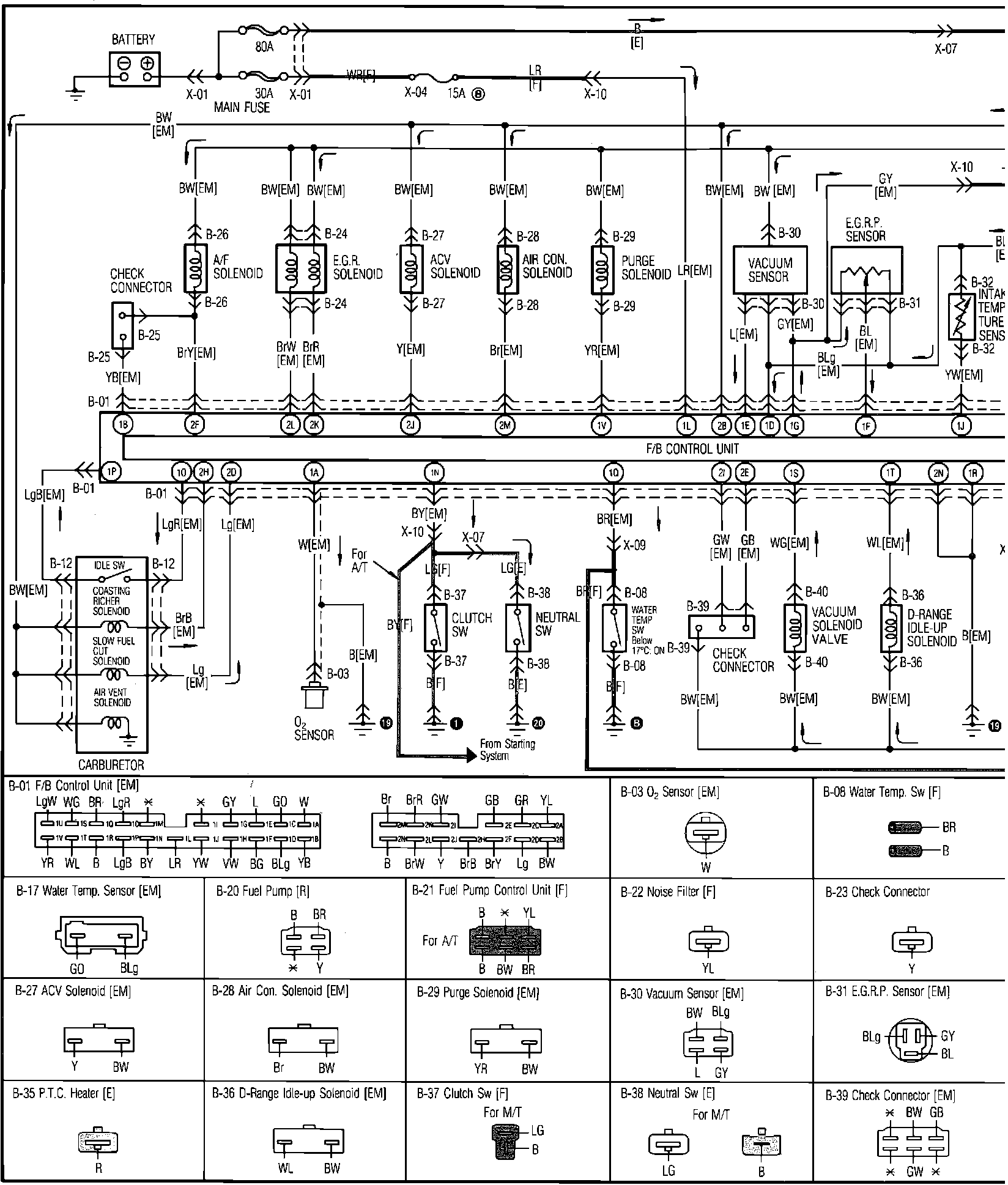

t�� Fig. 99c Wiring Diagram.:
