Heater - Mode Control Lever Inoperative

88mazda01

Category Applicable Model/s Subject Bulletin No. 060/88
15 (See below) HEATER CONTROL Issued 3/7/88
Revised




DESCRIPTION

Some 1986-88 B2000, B2200, and B2600 vehicles have had a problem with the heater mode control change lever. This lever becomes inoperative when the pivot breaks.

Therefore, an improved heater control with a more durable pivot has been installed at the assembly line since November, 1987.

If you encounter the above report, please replace the damaged parts with modified ones.



VIN OF PRODUCTION CHANGE

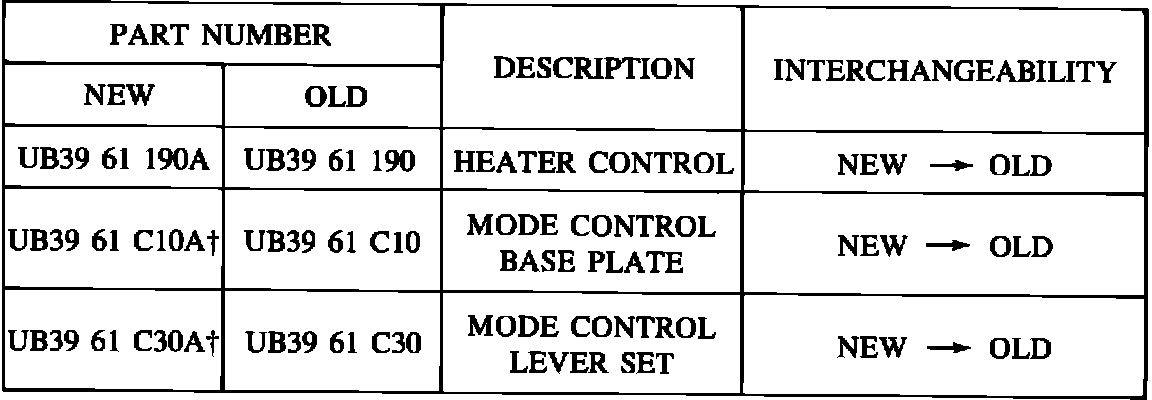

PARTS INFORMATION
Must be replaced together as an assembly.

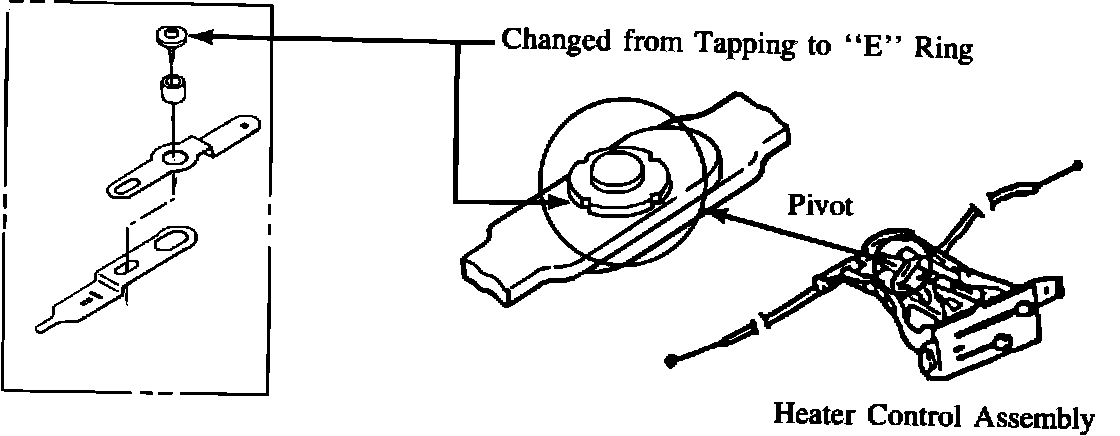

NOTE: Modify old heater control using new base plate and lever set or replace complete heater control.
