Blower Motor Switch: Testing and Inspection

1. Disconnect electrical connector from blower control switch.

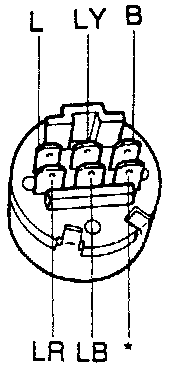

2. Check for continuity between switch terminals. Continuity should exist between terminals;

B and LY switch position 1
B and L switch position 2
B and LR switch position 3
B and LB switch position 4
