Blower Motor Resistor: Testing and Inspection

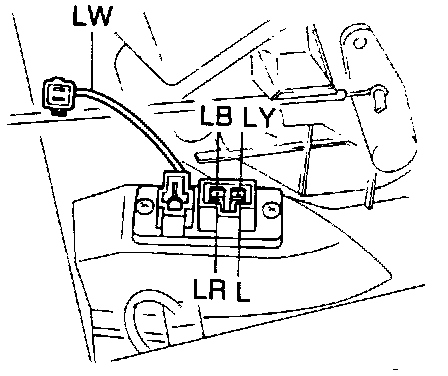

1. Disconnect electrical connector from lower motor resistor.

2. Measure resistance between connector terminals. Resistance values should be as follows:

LY and LW 2.1 ohms
L and LW 1.1 ohms
LR and LW 0.3 ohms
LB and LW 0.1 ohms
