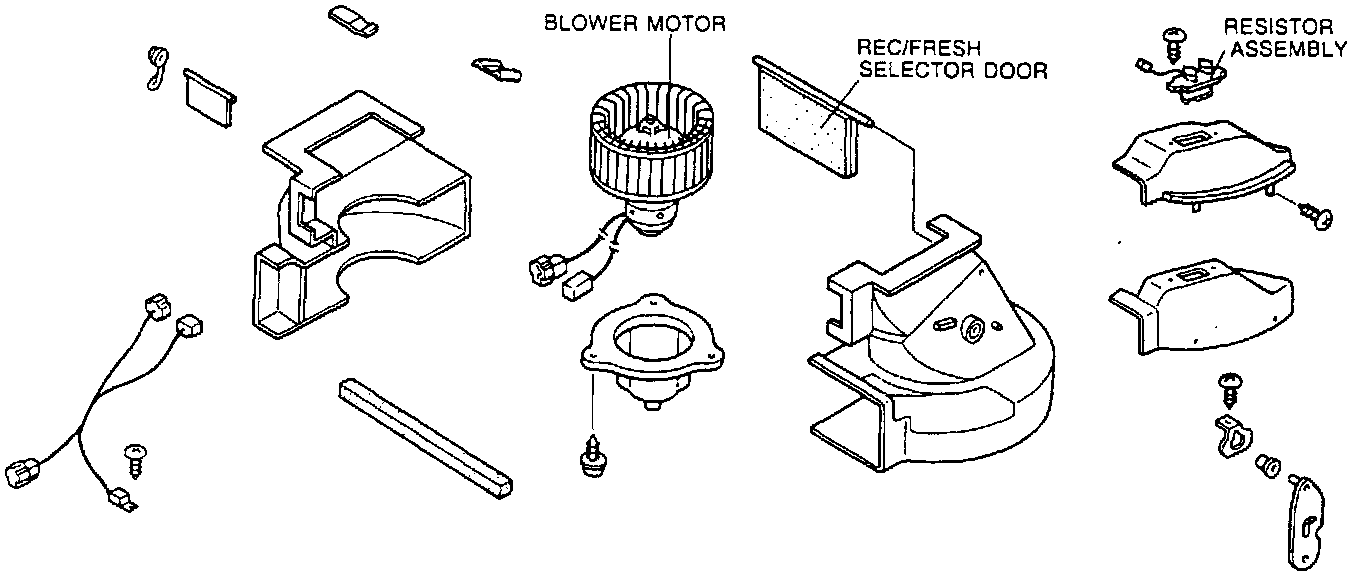

Blower Motor Resistor: Service and Repair

REMOVAL AND INSTALLATION



1. Disconnect the negative battery cable.

2. Remove the glove box and lower panel, if required.

3. Disconnect the blower motor resistor wire connector.

4. Remove the attaching screw and remove the resistor.

5. Install in reverse order.
