Mazda Truck
>>
1988
>>
B Series Truck L4-2184cc 2.2L 2200
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

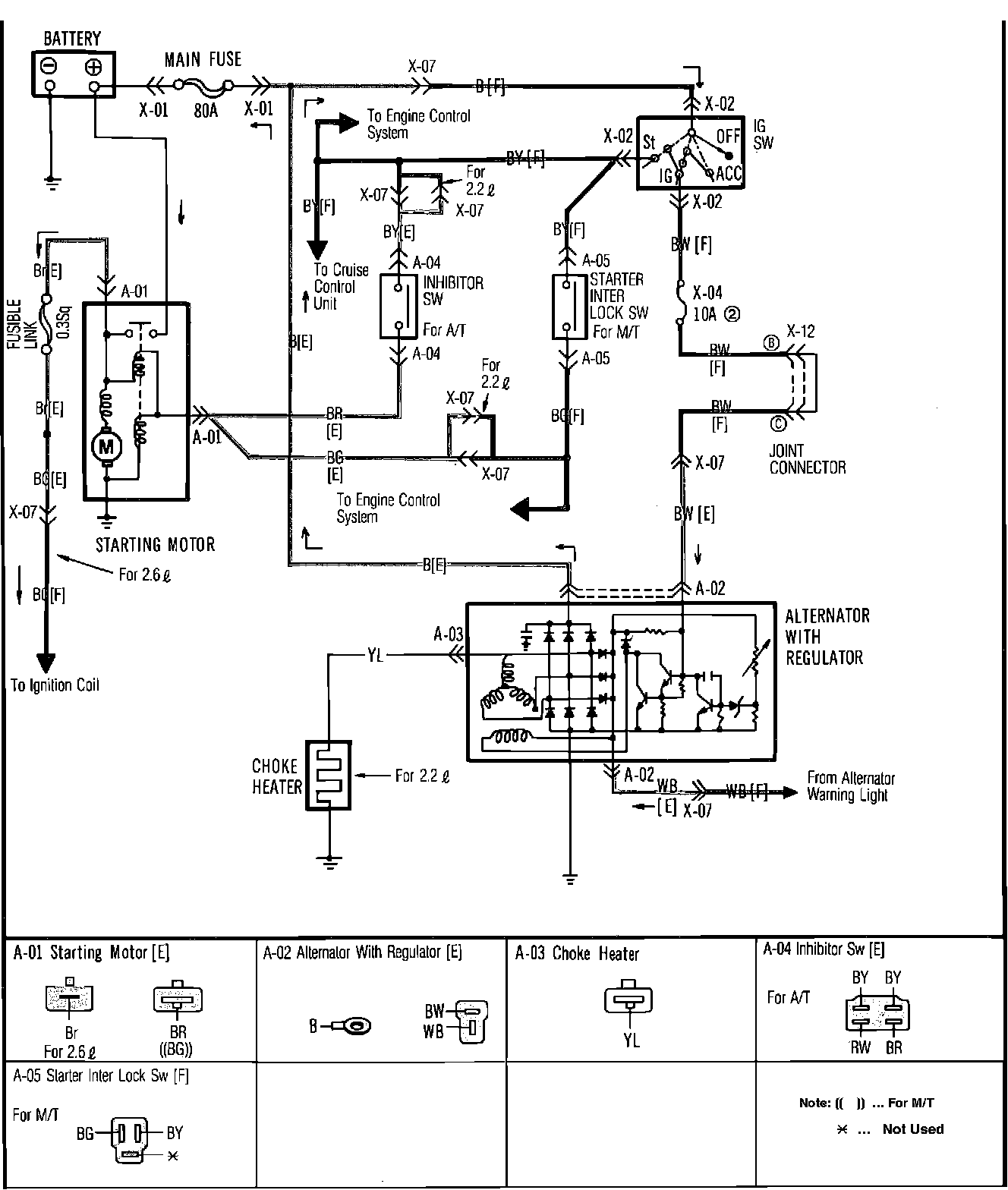

Starting and Charging System:
