Mazda Truck
>>
1984
>>
B Series Truck L4-2209cc DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

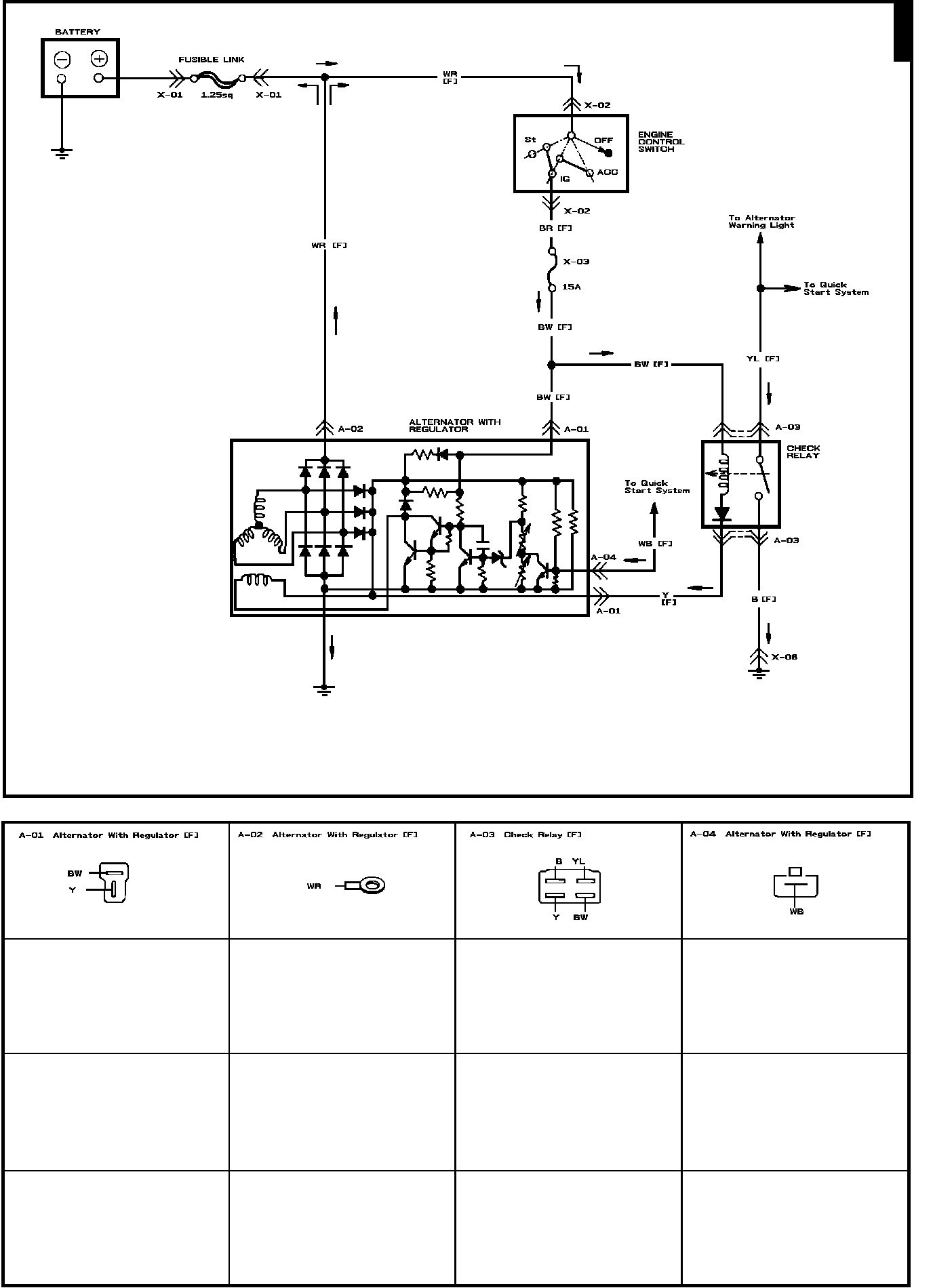

Fig. 67 Charging System Wiring Circuit:
