Mazda Truck
>>
1984
>>
B Series Truck L4-2000 1970cc
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Diagrams
>>
Electrical Diagrams
>>
Calif.
Calif.

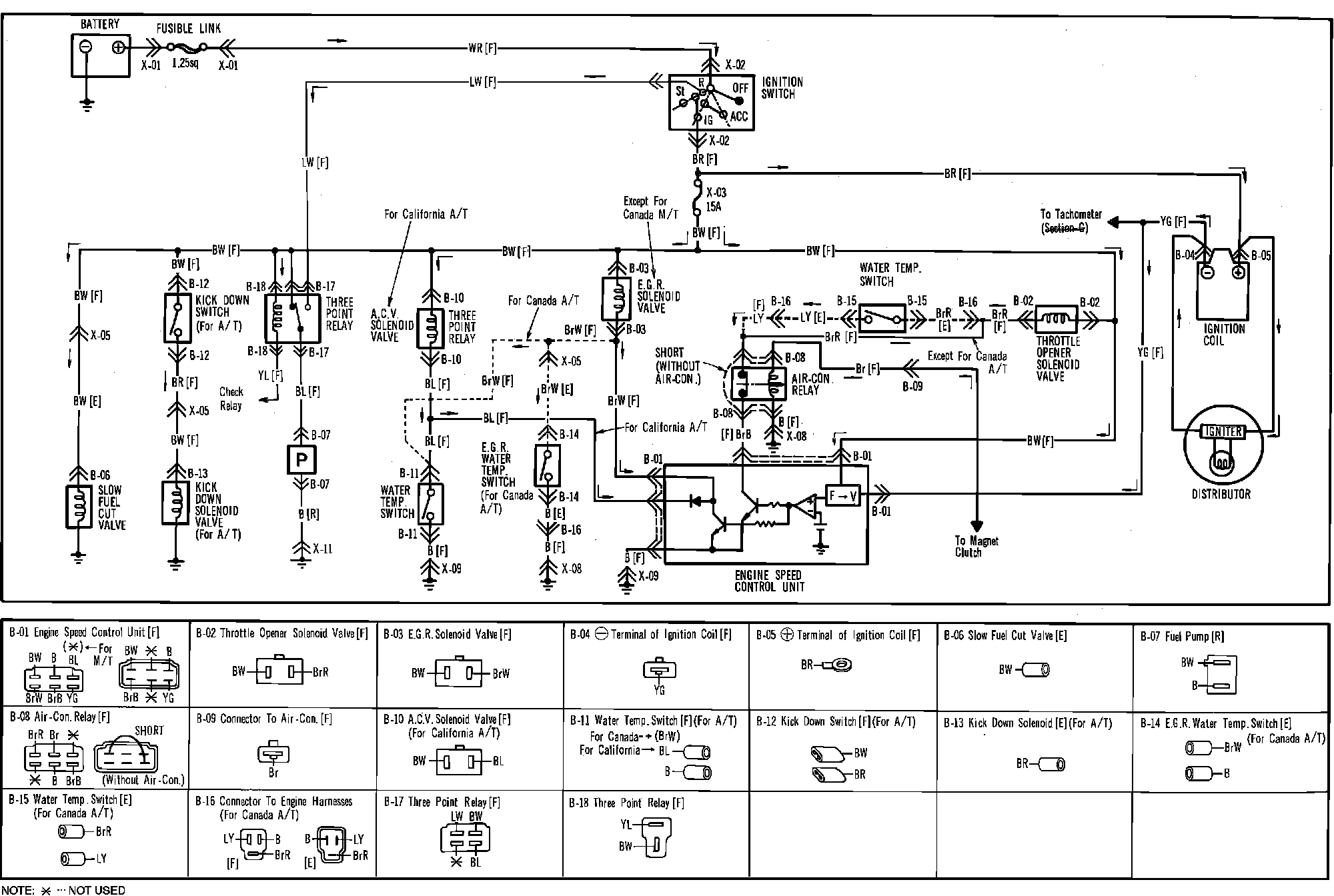

Fig. 73 Emission Control, Igniton, Kickdown System, Fuel Pump & Slow Fuel Cut Valve. Calif.:
