Mazda Truck
>>
1984
>>
B Series Truck L4-2000 1970cc
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Federal
Federal

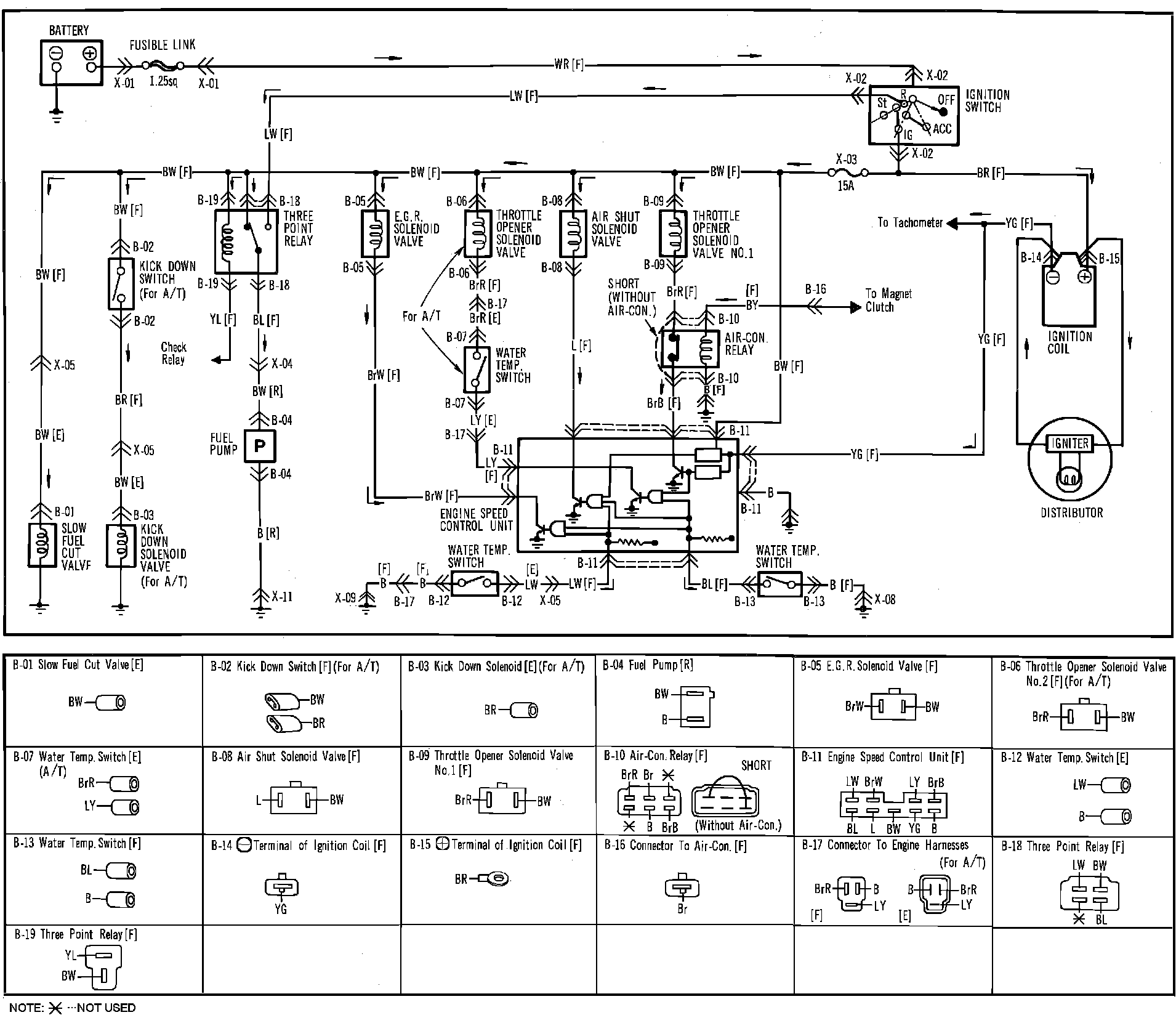

Fig. 74 Emission Control, Ignition & Kickdown System, Fuel Pump & Slow Fuel Cut Valve. Exc. Calif.:
