Mazda Truck
>>
1984
>>
B Series Truck L4-2000 1970cc
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Light Switch
Brake Light Switch

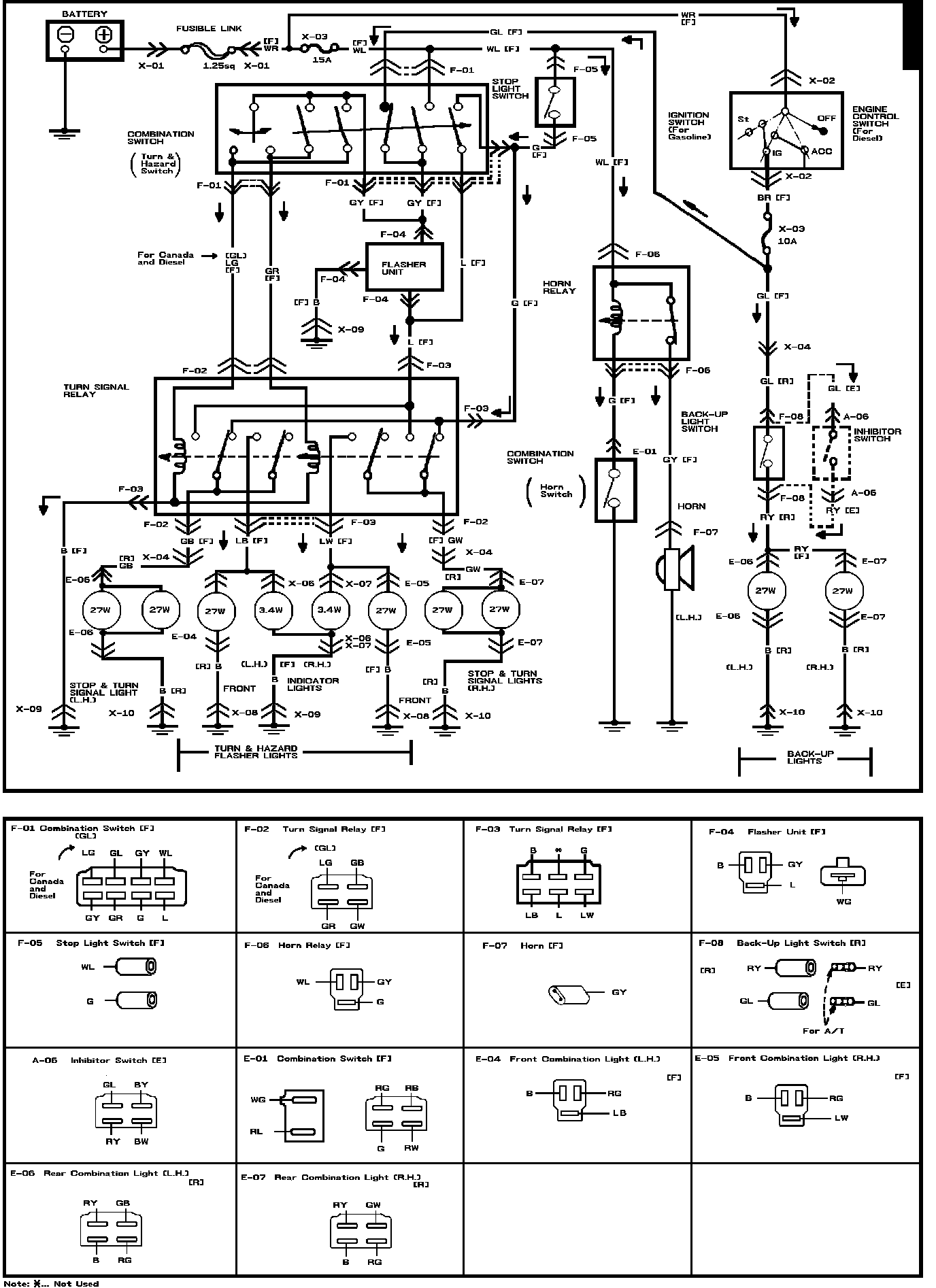

Fig. 83 Back-Up, Hazard Flasher, Stop & Turn Lights & Horn:
