Lincoln
>>
2012
>>
MKZ AWD V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Manifold Pressure/Vacuum Sensor
>>
Diagrams
>>

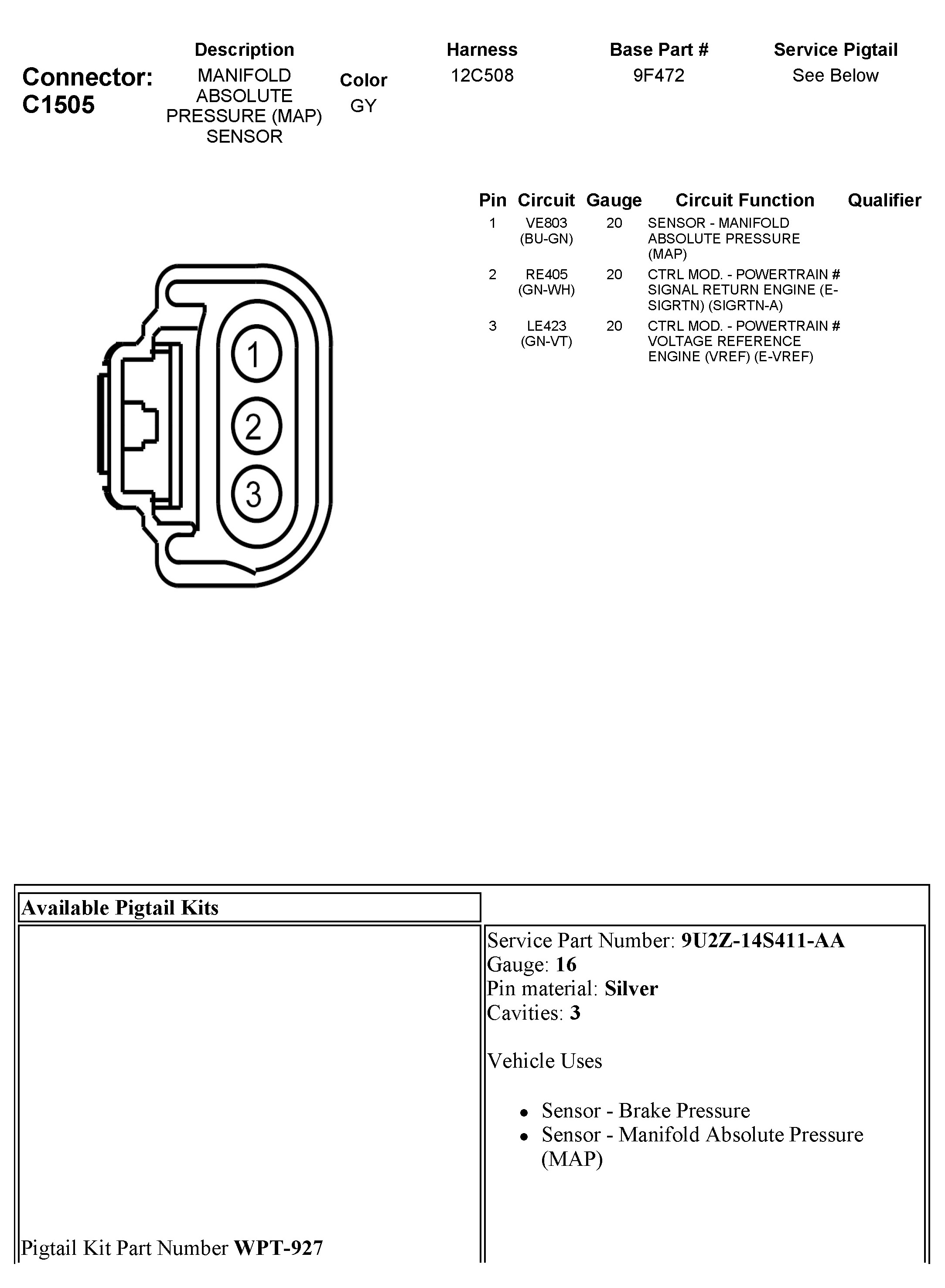

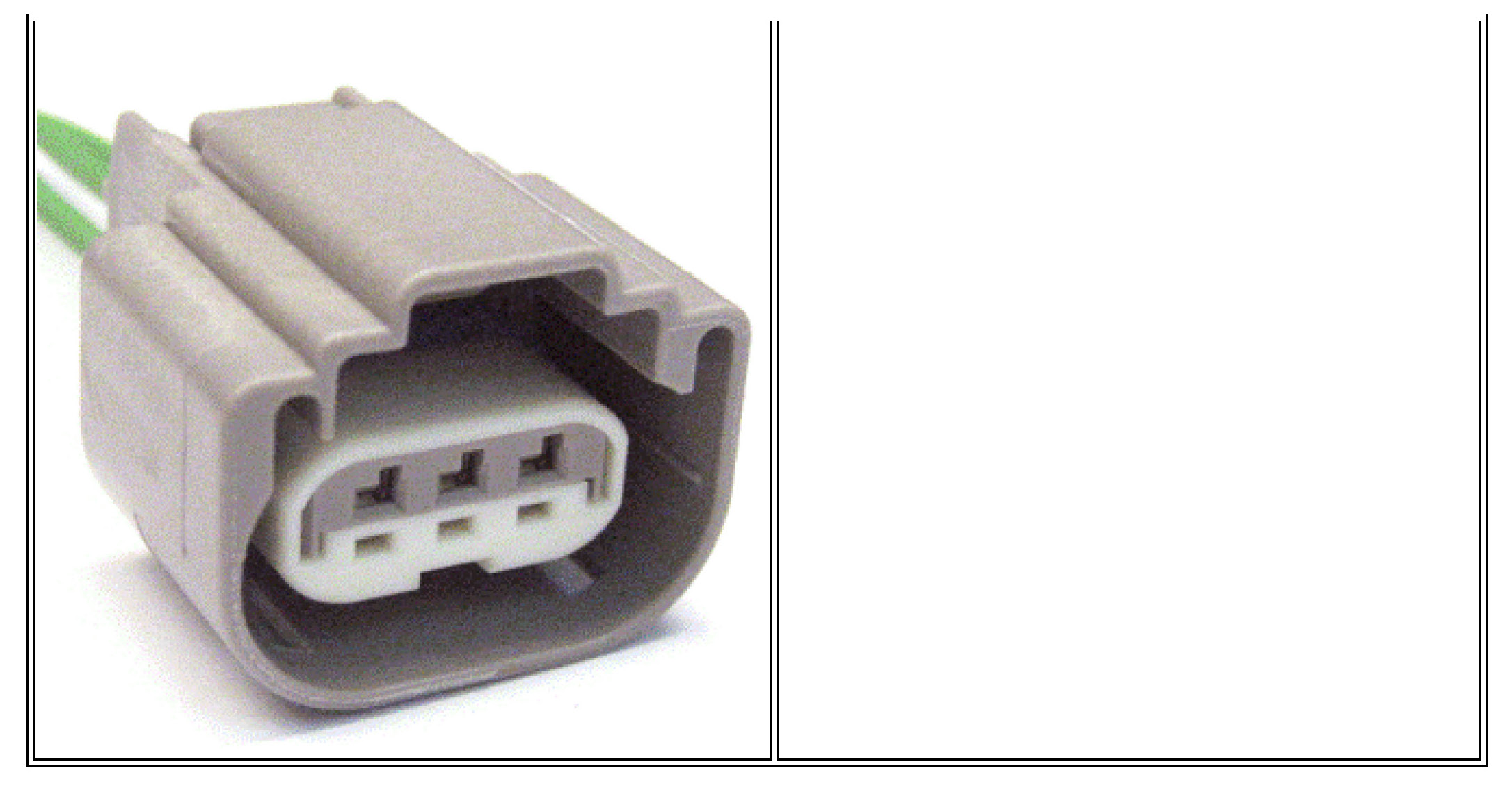

C1505 Manifold Absolute Pressure (MAP) Sensor
C1505 Manifold Absolute Pressure (MAP) Sensor
