Home
>>
Lincoln
>>
2012
>>
MKZ AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Input / Output Jack, Entertainment System
>>

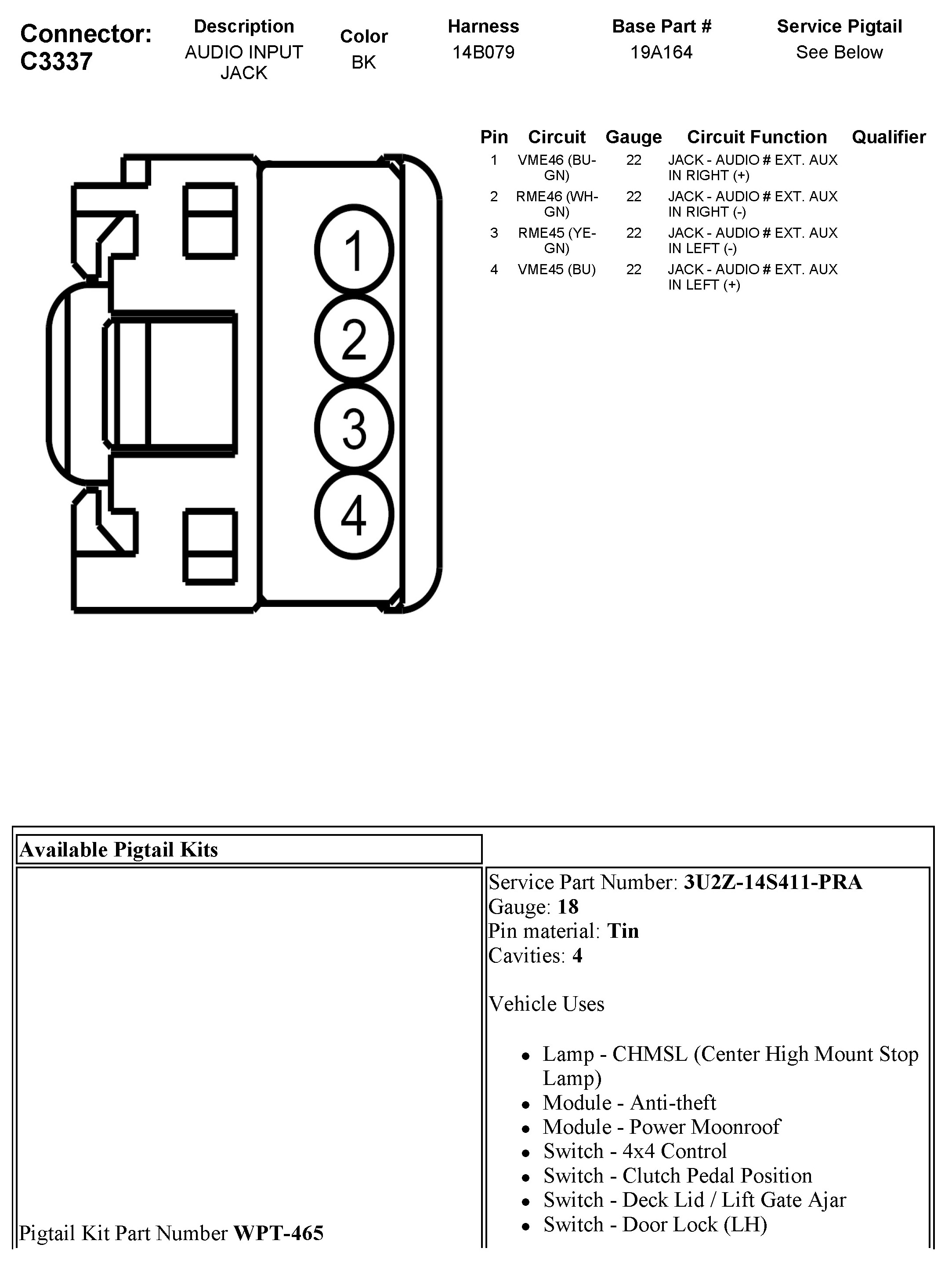

C3337 Audio Input Jack
C3337 Audio Input Jack
