Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

Transmission Filler Tube

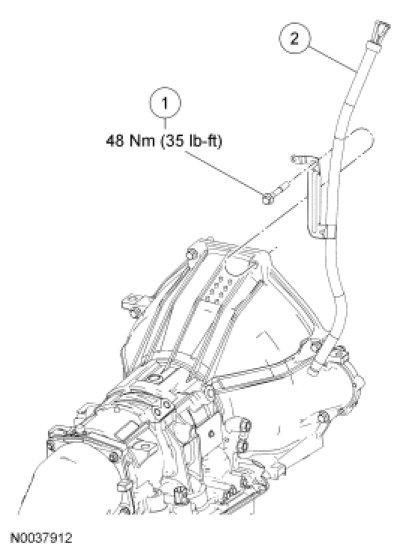

Removal and Installation

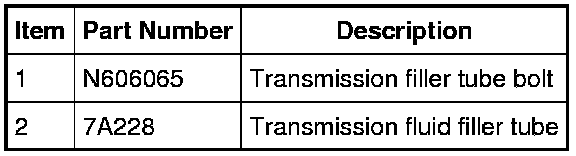

1. Remove the transmission filler tube bolt.
- Tighten to 48 Nm (35 lb-ft).





2. Remove the transmission filler tube.





3. To install, reverse the removal procedure.
