Evaporative Emissions Hose: Service and Repair

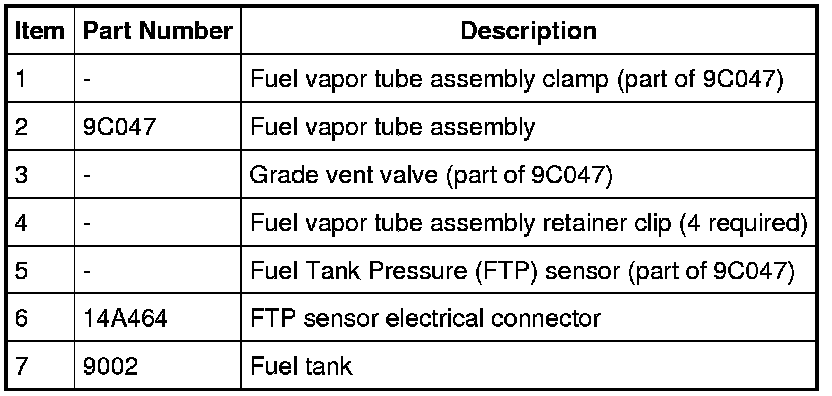

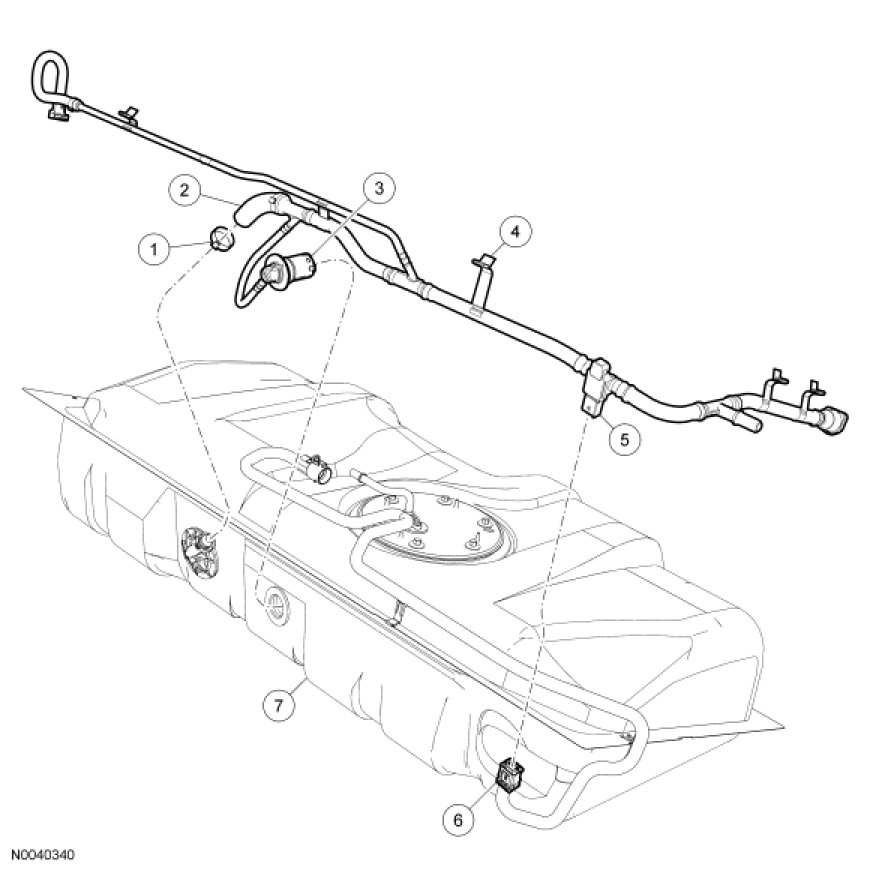

Fuel Vapor Tube Assembly













Removal and Installation

1. Remove the fuel tank. For additional information, refer to Fuel Delivery and Air Induction.

2. Disconnect the Fuel Tank Pressure (FTP) sensor electrical connector.

3. Disconnect the 4 fuel vapor tube assembly retainer clips from the fuel tank.

4. Remove and discard the fuel vapor tube assembly clamp.
- Install a new crimp-style clamp during installation.

5. NOTE: Be careful when removing the grade vent valve from the fuel tank grommet to avoid damaging either component.

Remove the grade vent valve from the fuel tank.

6. Remove the fuel vapor tube assembly from the fuel tank.

7. NOTE: Lubricate the grade vent valve grommet with clean engine oil.

To install, reverse the removal procedure.

- Carry out the Evaporative Emission System Leak Test. For additional information, refer to Evaporative Emission System Leak Test Testing and Inspection.
