Valve Seals

Valve Seals





Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the valve springs. For additional information, refer to Valve Springs Valve Springs.

3. Remove the valve stem seals.

Installation

1. NOTE: The valve stem seal must be bottomed on the valve seat.

NOTE: Make sure that the garter spring is present in the valve stem seal.

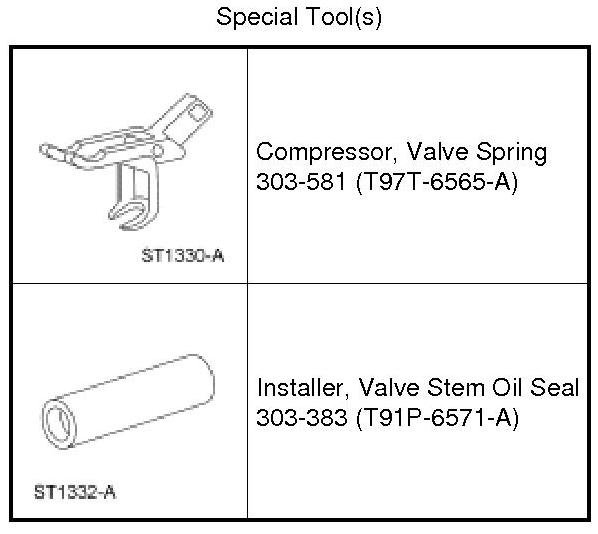

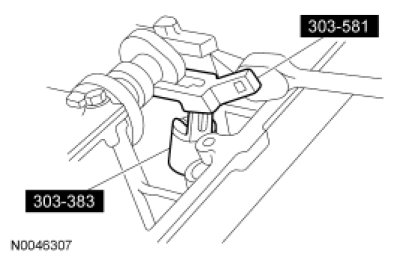

Use the Valve Spring Compressor and Valve Stem Oil Seal Installer to install the valve stem seals.





2. Install the valve springs. For additional information, refer to Valve Springs Valve Springs.
