Register - Passenger Side

Register - Passenger Side

Removal and Installation

1. Remove the passenger air bag module. For additional information, refer to Restraint Systems.

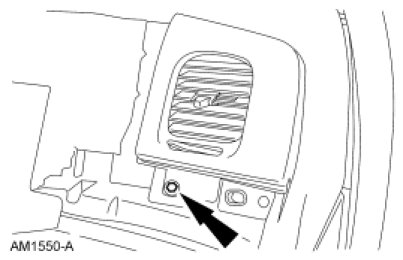

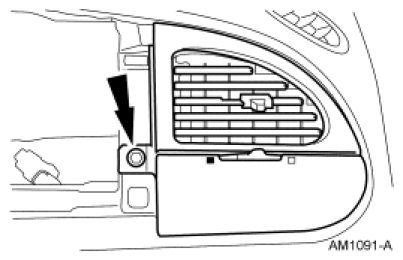

2. Remove the screw and the passenger side register.





3. To install, reverse the removal procedure.
