Register - Driver Side and Center

Register - Driver Side and Center

Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

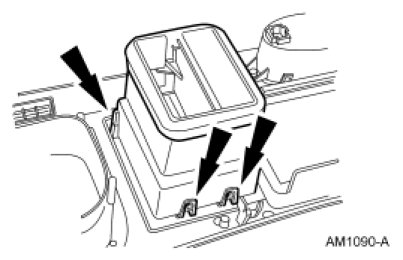

2. Disengage the 4 lock tabs and remove the register.





3. To install, reverse the removal procedure.
