Home >> Lincoln >> 2009 >> MKZ AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

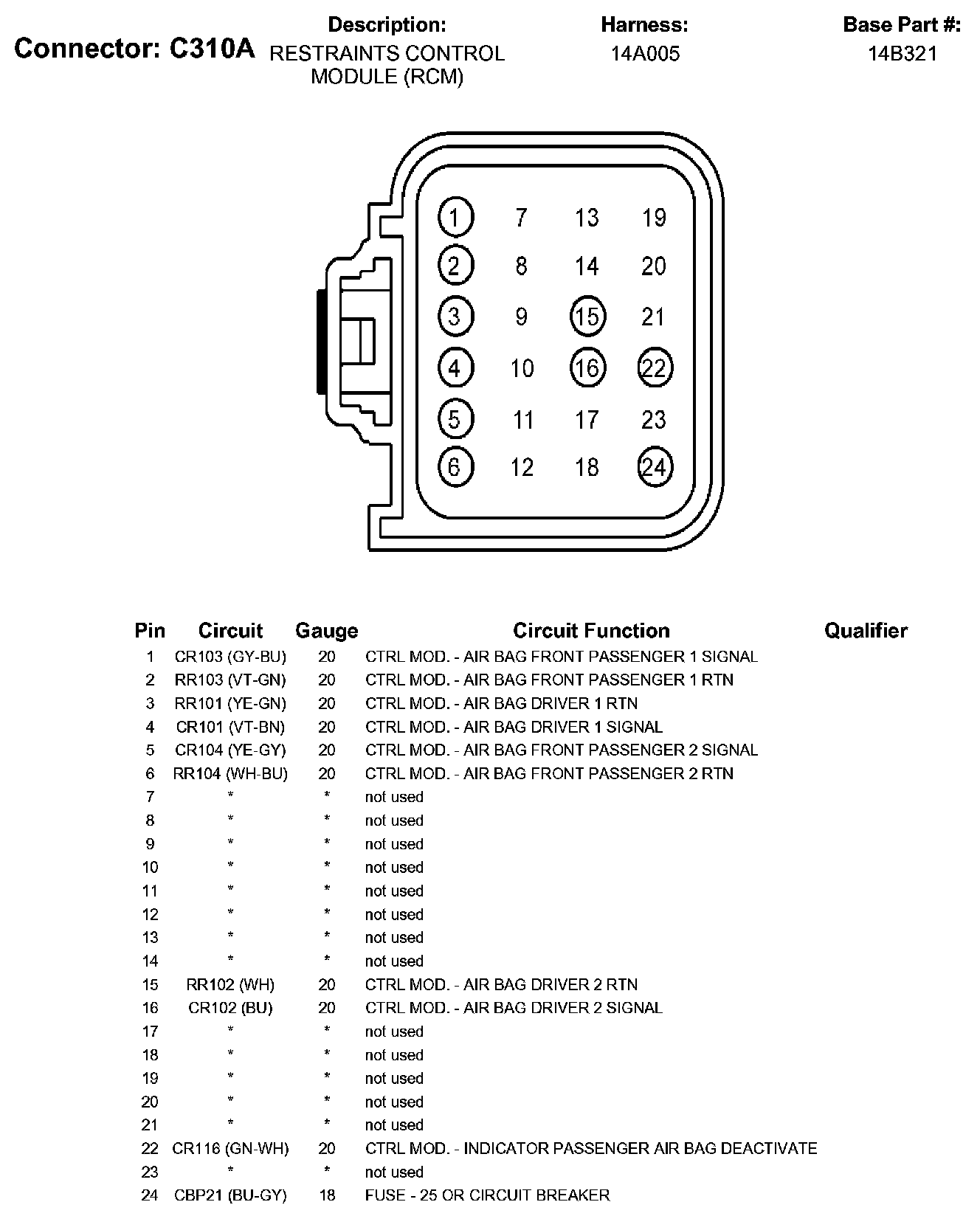

Air Bag Control Module



Part 1:



Part 2:
