Home >> Lincoln >> 2009 >> MKS FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Inline >> C211

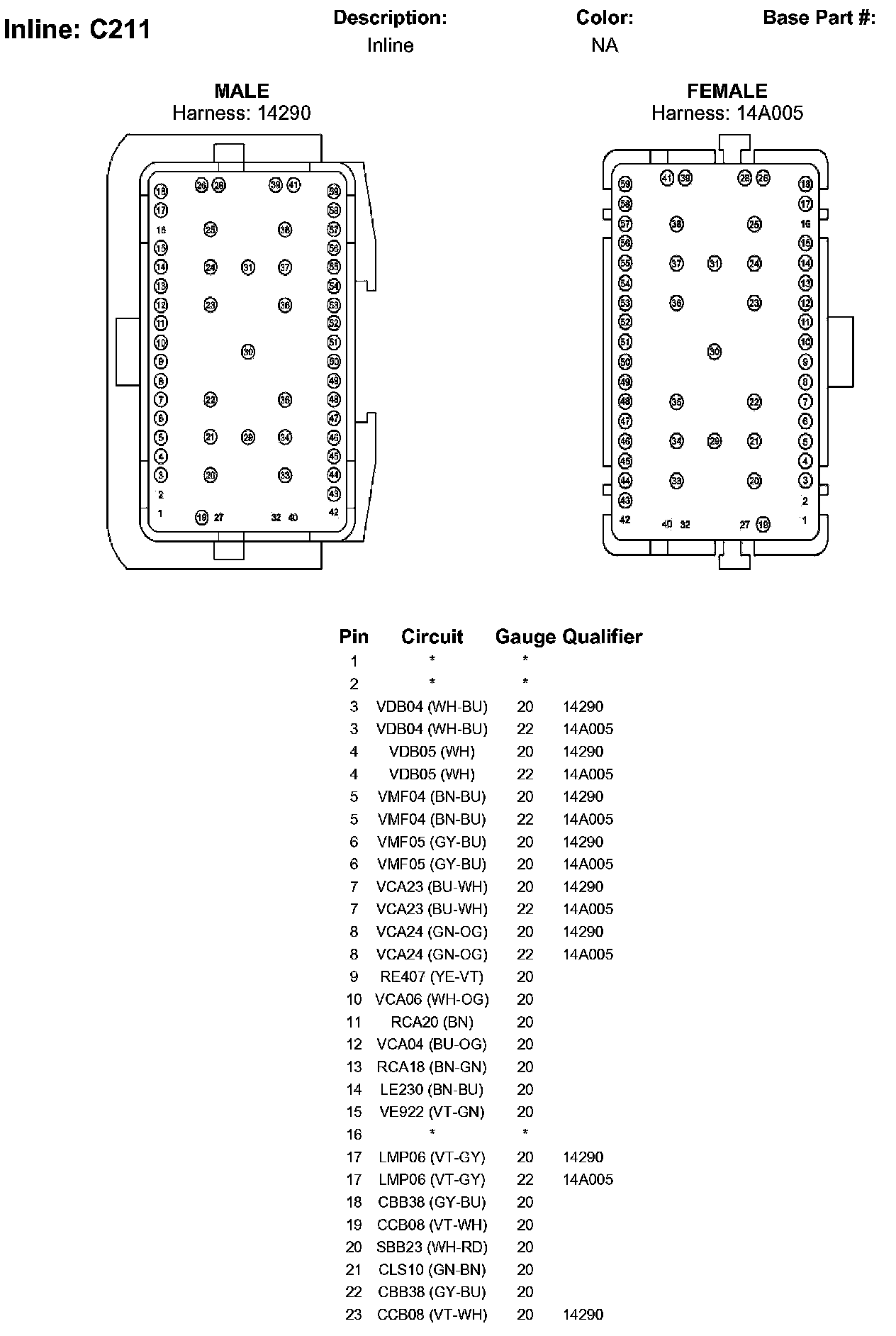

C211

Part 1:

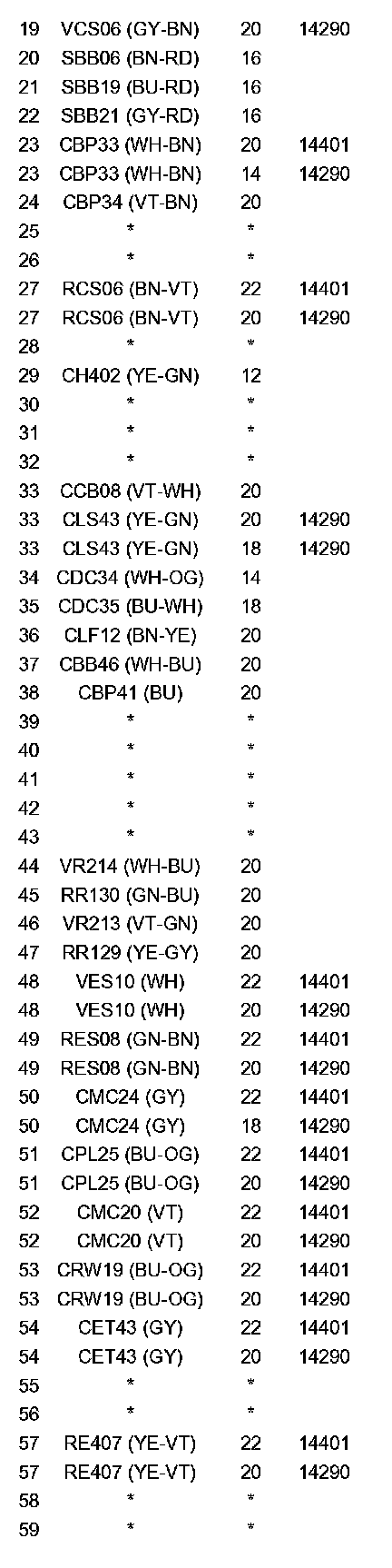

Part 2:
