Home >> Lincoln >> 2009 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Passenger Compartment Fuse Panel

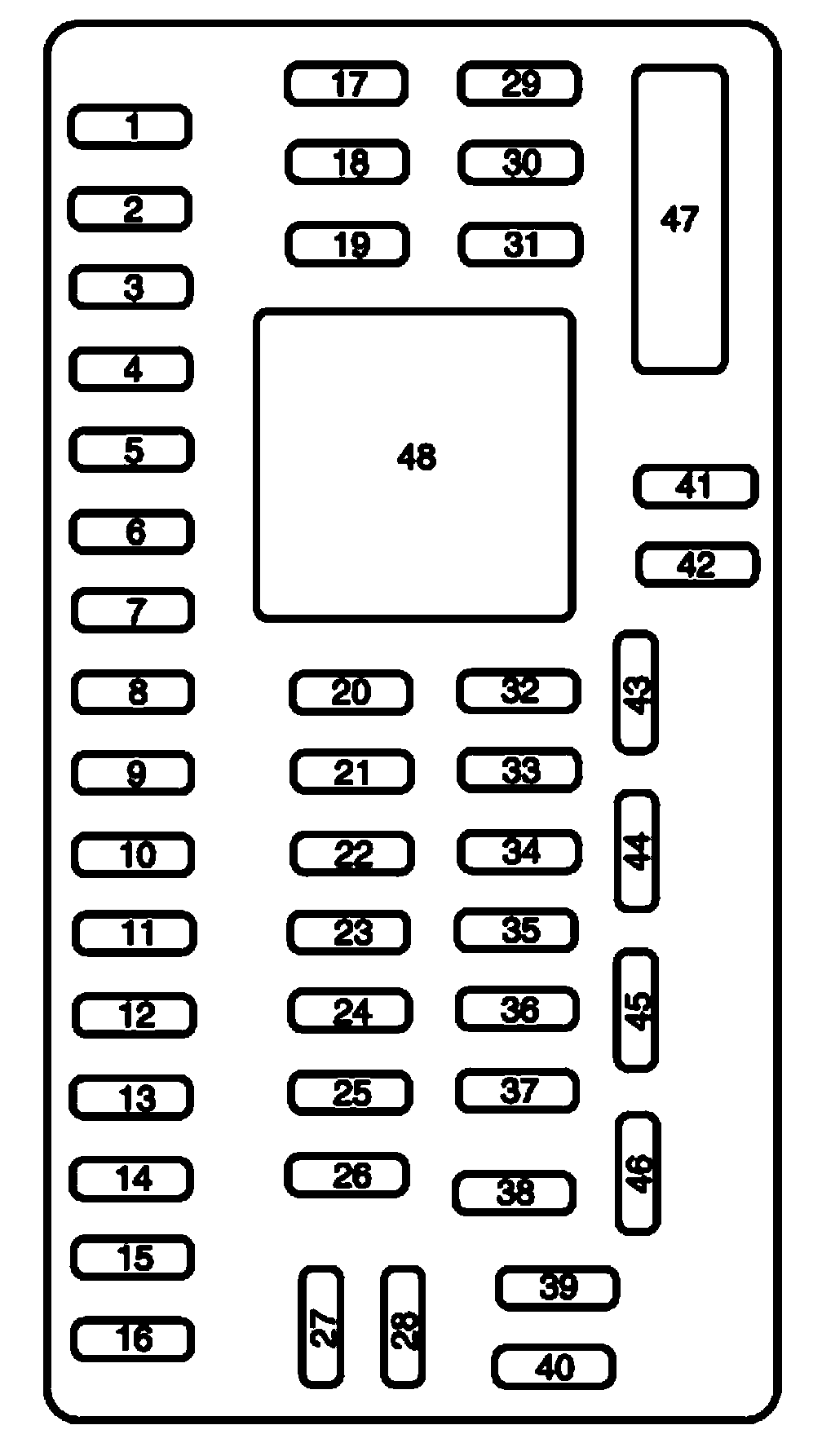

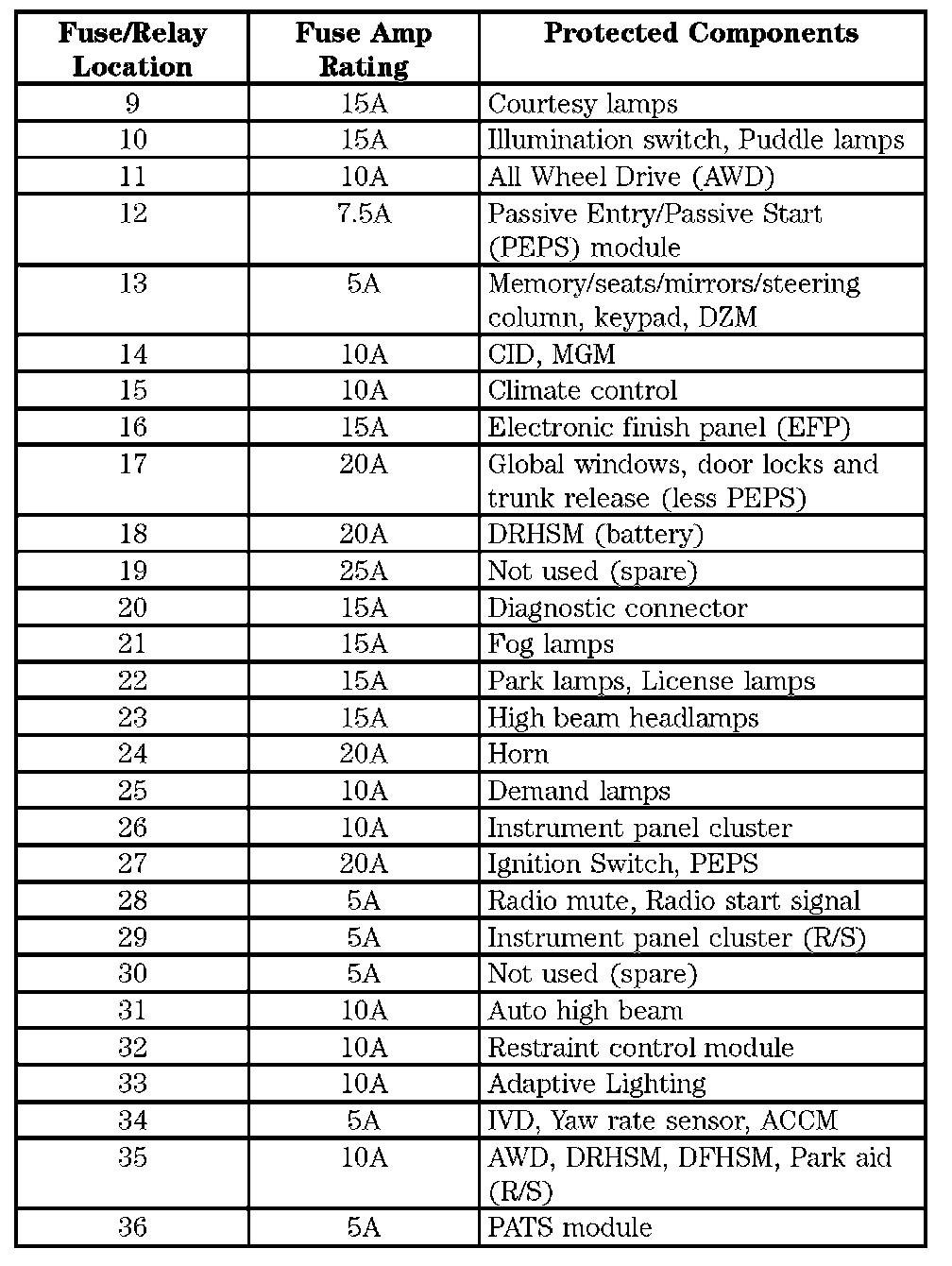

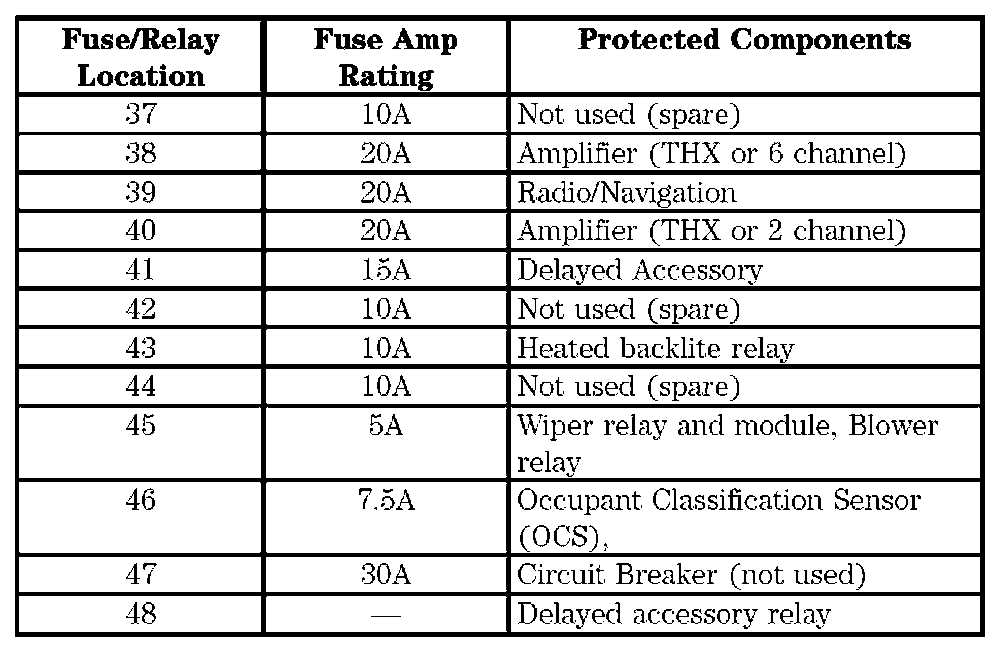

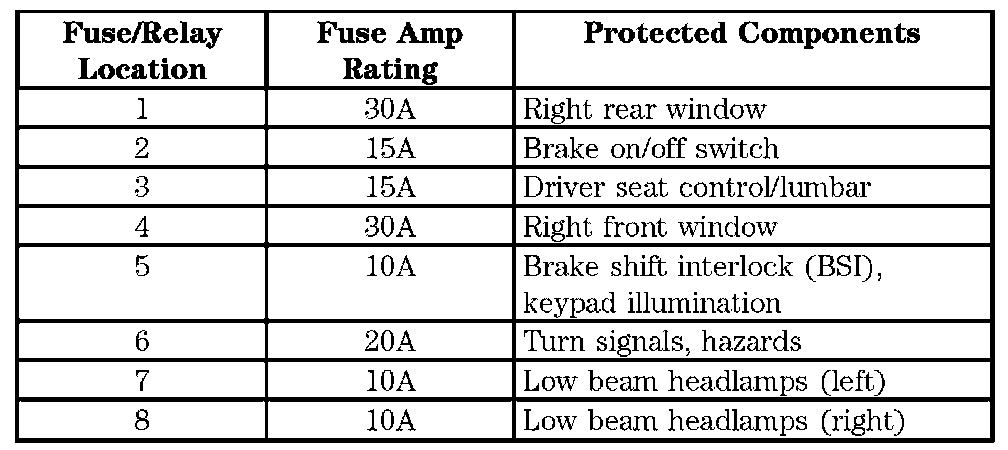

Passenger Compartment Fuse Panel

Note: The fuse panel is located under the instrument panel to the left of the steering wheel.
