Rear Door Window Glass: Service and Repair

REAR DOOR WINDOW GLASS

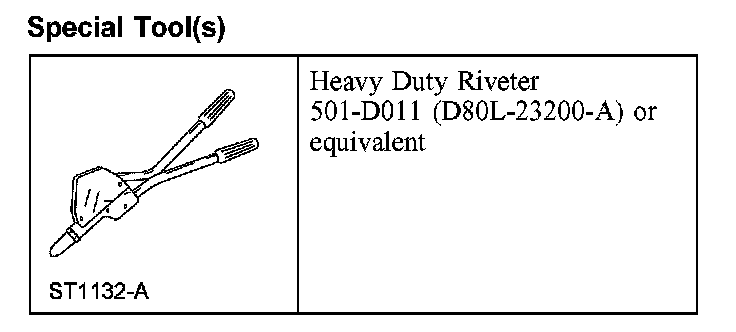

Special Tool(s):

Special Tool(s)

Removal and Installation
1. Remove the rear door trim panel.
2. Remove the interior weatherstrip.
3. Position the watershield aside.
4. Remove the nut and the exterior weatherstrip.
5. Connect the battery.
6. Connect the window control switch electrical connectors.
7. Lower the window glass to gain access to the rear door window glass rivets.

8. CAUTION: Prior to removing rivet center pins, it is necessary to place a suitable block support between the door outer panel and the rear door window channel bracket to stabilize the rear door window glass during rivet removal.

Remove the rear door window glass rivets.

9. Lower the window glass to the full down position.
10. Remove the glass from the division bar, move the glass between the division bar and the door outer panel and remove the rear door window glass.
11. To install, reverse the removal procedure.
- sing the special tool, install the new rivets.
